Multi-Level Page Tables

Abstract

Most applications utilize only a tiny, sparse fraction of their total Virtual Address Space. Multi-Level Page Tables exploit this sparsity by introducing a tree-like hierarchy of page directories. By allocating secondary page tables only for virtual address regions currently in use, hierarchical page tables eliminate the massive memory overhead of flat linear tables.

• Category: Hierarchical Address Translation Architectures
• Core Principle: Indirection via a Page Directory tree.
• Primary Advantage: Memory overhead scales with actual memory usage, not total address space capacity.

---

The Need for Hierarchical Paging

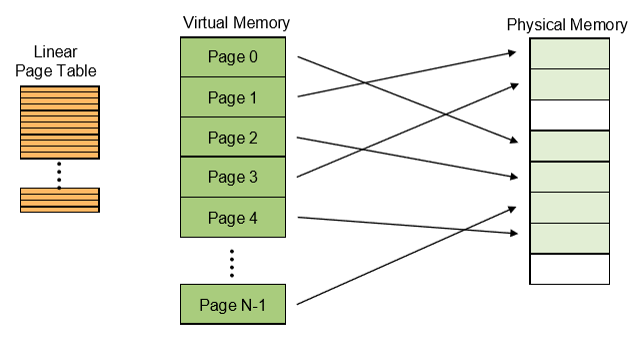

A flat linear table allocates Page Table Entries (PTEs) for every possible virtual page, even if those pages are unmapped.

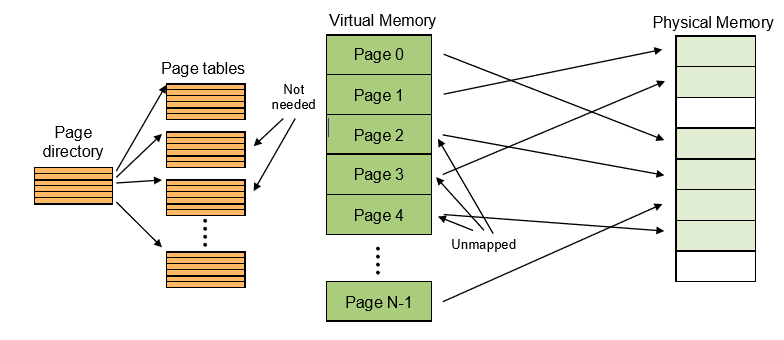

By adding a level of indirection, Multi-Level Page Tables dynamically allocate secondary page tables only when a process actually uses that region of memory:

---

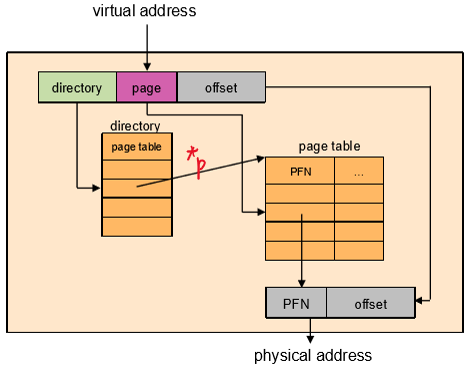

Two-Level Page Table Architecture

In a two-level scheme, the virtual address is divided into three distinct bitfields:

1. Directory Page Table (Root / Page Directory): Maps the upper virtual address bits to a secondary page table. If an entire range of memory is unused, its directory entry is marked invalid (0), and no secondary page table is allocated.
2. Secondary Page Table: Maps the middle virtual address bits to physical Page Frame Numbers (PFN).
3. Offset: Indexes directly into the physical page frame.

---

Bit-Splitting Calculation Example

Assume a 32-bit address space, $4\text{ KB}$ page size, and $4\text{-byte}$ PTEs:

1. Offset Bits:
   $\text{Page Size}=4\text{ KB}=4096\text{ bytes}=2^{12}\text{ bytes}⟹12\text{ bits}$
2. Page Directory Sizing:
   To ensure every page table fits cleanly inside a single $4\text{ KB}$ page frame:
   $\text{Entries per Page}=\frac{4\text{ KB}}{4\text{ bytes per entry}}=1024\text{ entries}=2^{10}⟹10\text{ bits}$
3. Secondary Page Table Sizing:
   $\text{Remaining Bits}=32-12\text{ (Offset)}-10\text{ (Directory)}=10\text{ bits}$

This $10\text{-}10\text{-}12$ bit split allows each secondary table to fit inside one $4\text{ KB}$ page ($2^{10}\times 4\text{ bytes}=4\text{ KB}$). If a process uses only its code and stack segments, it requires only the Page Directory plus two secondary page tables ($12\text{ KB}$ total instead of $4\text{ MB}$).

---

Generalizing to Multi-Level Paging & x86-64

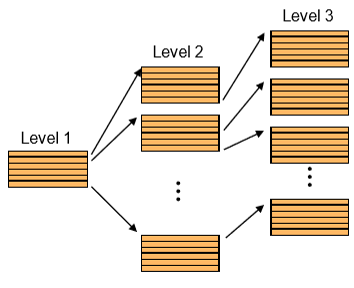

Hierarchical paging extends to $N$ levels to accommodate 64-bit architectures. Unmapped subtrees in the page map hierarchy are omitted entirely:

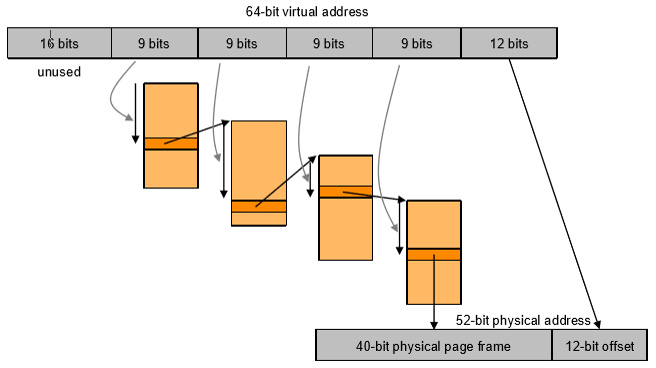

x86-64 4-Level Paging Scheme

Standard x86-64 hardware utilizes a 4-level page table handling a $48\text{-bit}$ canonical address space ($256\text{ TB}$):

• Page Size: $4\text{ KB}$.
• PTE Size: $8\text{ bytes}$.
• Entries per Page: $\frac{4\text{ KB}}{8\text{ bytes}}=512=2^9⟹9\text{ bits per level}$.
• Highest $16\text{ bits}$: Unused / Sign-extended.

---

Multi-level Paging with TLB Caching

graph TD
    VA["Virtual Address<br/>(Directory Indices | Offset)"] --> TLB{"Query TLB Cache"}
    TLB -->|"TLB Hit (~1 cycle)"| Concat["Concatenate PFN + Offset"]
    TLB -->|"TLB Miss"| Walk["Walk Page Directory Tree in RAM"]
    Walk --> Update["Update TLB with New PTE"]
    Update --> Concat
    Concat --> PA["Physical RAM Address"]

---
