Introduction to Operating Systems

Abstract

An Operating System (OS) is a fundamental software layer that sits directly between user applications and raw physical hardware. It serves a dual purpose: acting as a Resource Manager that safely allocates, reclaims, and multiplexes physical hardware below, and an Abstraction Layer that presents clean, virtualized logical interfaces (e.g., files, processes, sockets) to applications above.

• Category: System Architecture & Operating System Foundations
• Primary Responsibilities: Resource Allocation, Hardware Abstraction, Isolation & Protection, Concurrency.
• Core Design Philosophy: Strict Separation of Policy and Mechanism.

---

What is an Operating System?

At its most foundational level, an Operating System is the software engine that controls and mediates access to physical computing resources. It abstracts away complex, messy hardware details and replaces them with clean, standardized logical interfaces.

flowchart TD
    APPS["<b>User Applications</b><br/><i>(Web Browsers, ML Frameworks, Text Editors)</i>"]
    API["<b>OS API / System Call Interface</b><br/><i>(POSIX, Win32 - Files, Threads, Sockets)</i>"]
    OS["<b>OPERATING SYSTEM</b><br/><i>(Resource Allocation, Protection, Abstraction)</i>"]
    HW["<b>Physical Hardware</b><br/><i>(CPUs, RAM, Disks, Network Interfaces)</i>"]

    APPS --- API --- OS --- HW

    classDef cellStyle font-size:15px,padding:12px;
    class APPS,API,OS,HW cellStyle

---

The Dual Role of the OS

An OS operates from two primary perspectives: looking down toward hardware, and looking up toward user software.

1. Managing Resources (Looking Down)

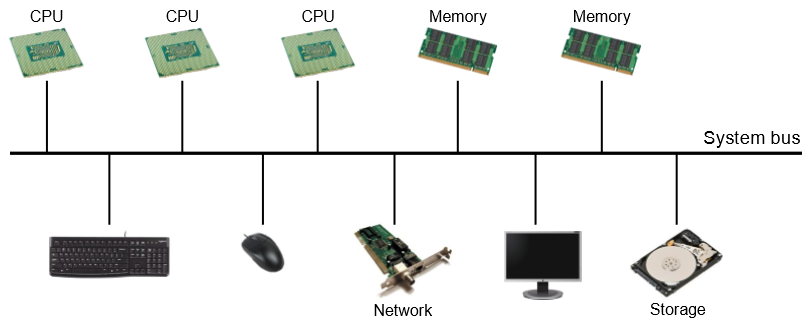

Hardware consists of finite, physical assets. The OS manages, allocates, and reclaims these resources while protecting applications from interfering with one another:

• Computation (CPUs): Time-shares CPU core execution cycles across multiple active threads/processes.
• Volatile Storage (RAM): Allocates memory spaces to running processes and reclaims memory when processes terminate.
• Persistent Storage (Disks/SSDs): Manages non-volatile storage media blocks and organizes physical storage structures into accessible structures.
• Communication & Devices: Controls network interfaces, keyboards, monitors, and graphics adapters via specialized device drivers.

2. Providing Abstractions (Looking Up)

Direct interaction with raw hardware registers is error-prone, insecure, and complex. The OS provides logical objects and standardized operations on those objects:

Hardware Resource	OS Logical Abstraction	Operations Provided
Physical CPU Cores	Processes / Threads	create(), yield(), exit(), wait()
Physical RAM Blocks	Virtual Memory / Address Space	malloc(), mmap(), sbrk()
Disk Storage Sectors	Files & Directories	open(), read(), write(), close()
Network Cards (NICs)	Sockets & Pipes (IPC)	socket(), bind(), connect(), send()

The Core Illusions of the OS

By virtualizing hardware, the OS provides every application with the illusion that it has infinite memory and is the sole application running on a dedicated CPU core.

---

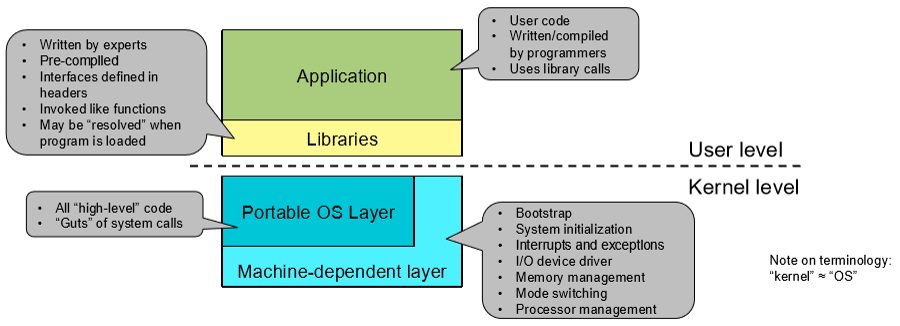

System Architecture & Layering

In a typical system (such as Unix/Linux), software and hardware are organized into distinct privilege layers separating unprivileged user operations from privileged kernel tasks:

flowchart TD

USER_SPACE["<b>User Space</b><br/><br/>Applications → Standard C Libraries (libc / stdio)"]

MODE_SWITCH["<b>Interrupts / Traps / System Calls</b><br/><i>(Hardware Mode Switch)</i>"]

KERNEL_SPACE["<b>Kernel Space</b><br/><br/>• Process Manager &nbsp;|&nbsp; Virtual Memory &nbsp;|&nbsp; File System / VFS<br/>• IPC / Network &nbsp;|&nbsp; Device Drivers &nbsp;|&nbsp; CPU Scheduler"]

HARDWARE["<b>Physical Hardware</b><br/><br/>• CPU & MMU &nbsp;|&nbsp; RAM Memory &nbsp;|&nbsp; Disk / SSD &nbsp;|&nbsp; Network Card"]

USER_SPACE --- MODE_SWITCH --- KERNEL_SPACE --- HARDWARE

classDef cellStyle font-size:15px,padding:12px;
class USER_SPACE,MODE_SWITCH,KERNEL_SPACE,HARDWARE cellStyle

---

Fundamental Design Principle: Policy vs. Mechanism

A foundational guiding principle in systems engineering is the explicit Separation of Policy and Mechanism:

• Mechanism (The “How”): The technical tool or implementation that achieves a particular functional capability.
• Policy (The “What”): The decision-making rules or algorithms that determine which goal should be achieved.

CPU Scheduling Example

• Mechanism: Context switching routines, saving/restoring CPU register states, and manipulating execution run-queues.
• Policy Options:
  1. Round-Robin Policy: Treat all user processes completely equally.
  2. Priority Policy: Give interactive applications priority over background processes.
  3. Real-Time Policy: Guarantee hard execution deadlines for critical audio/video processing.

Why Separate Policy from Mechanism?

Decoupling policy from mechanism ensures system flexibility. System architects can change, tune, or completely replace the policy (e.g., switching from a Fair-Share CPU scheduler to a Real-Time scheduler) without needing to rewrite or modify the underlying hardware context-switching mechanisms.

---

Trade-offs, Conflicts, and Evolution

Operating systems are constrained by conflicting operational goals. System designers must navigate core engineering trade-offs based on target application needs:

Conflicting Operational Goals

Goal Conflict	Operational Trade-off Description
Fairness vs. Efficiency	Dividing CPU time equally among 100 threads introduces frequent context-switching overhead, reducing total computational throughput.
Security vs. Performance	Enforcing strict memory boundary checks and cryptographic isolation adds latency to system calls and memory accesses.
Portability vs. Performance	Providing a generic, portable driver interface across all hardware platforms may obscure hardware-specific vendor optimizations.

System Evolution Drivers

While core OS concepts originate from early mainframe computing in the 1970s, operating systems continually adapt due to shifts in:

1. Hardware Trajectories: Mainframes $\to$ Minicomputers $\to$ Desktop PCs $\to$ Laptops $\to$ Smartphones $\to$ Wearables / Embedded Systems.
2. Application Demands: Command-line batch execution $\to$ Graphical User Interfaces $\to$ Web-based cloud services $\to$ Machine Learning workloads and Virtual Reality.

---

Core OS Design Principles Summary

• Abstraction: Hide physical hardware complexity behind uniform, clean interfaces.
• Modularity: Divide the kernel into distinct, well-defined subsystems (e.g., Virtual Memory Manager, Virtual File System).
• Simplicity: Keep core primitives simple to minimize bug surfaces and security vulnerabilities.
• Caching: Store frequently accessed data in fast volatile memory to mask slow persistent device latency.
• Isolation & Protection: Prevent untrusted or buggy user programs from corrupting other applications or crashing the system kernel.

---
