Thread Context Switch & Scheduling

4 min read

Abstract

Thread context switching is the low-level mechanism of saving the hardware execution context (PC, SP, registers) of an active thread into its TCB and loading the saved context of another runnable thread. Thread execution is orchestrated via kernel state queues using either Non-Preemptive (voluntary yield) or Preemptive (involuntary timer interrupt) scheduling.

  • Category: OS Scheduling & Low-Level Mechanics
  • Core Operations: State queue linking/unlinking, context switching via assembly, hardware timer preemption.
  • Key Primitives: yield(), TCB State Queues, Hardware Timer.

1. Thread Execution States & State Queues

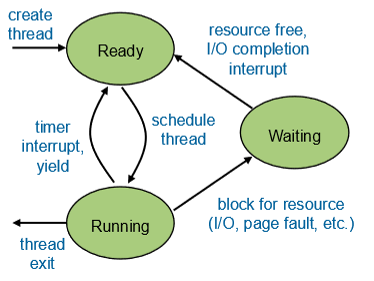

Like processes, threads transition through three primary execution states: Running, Ready, and Waiting (Blocked).

Kernel State Queues

To manage thousands of active threads efficiently, the OS kernel maintains doubly linked state queues:

  • Ready Queue: A queue holding TCB pointers of threads ready to execute on a CPU core.
  • Waiting Queues: Separate event queues holding blocked threads waiting on specific operations:
    • Disk Wait Queue: Threads waiting for disk I/O blocks.
    • Timer Wait Queue: Threads sleeping for a set duration.
    • Synchronization Wait Queue: Threads waiting on mutexes, semaphores, or condition variables.

When a thread changes state, the OS unlinks its TCB from its current queue and links it into another state queue.

2. Non-Preemptive Scheduling & yield()

In a Non-Preemptive scheduling environment, a running thread executes continuously until it voluntarily yields control of the CPU by calling an explicit routine like yield(), sleep(), or exiting.

Ping-Pong Execution Example

// Ping Thread
while (1) {
    printf("ping\n");
    yield();
}

// Pong Thread
while (1) {
    printf("pong\n");
    yield();
}

Execution Trace: ping yield() pong yield() ping …

Implementing yield()

When a thread calls yield(), it voluntarily surrenders the CPU core to the next runnable thread:

void yield() {
    thread_t old_thread = current_thread;

    // Move old thread to back of ready queue so it is not lost
    append_to_queue(ready_queue, old_thread);

    // Select next runnable thread
    current_thread = get_next_thread(ready_queue);

    // Magic step: Switch execution context
    context_switch(old_thread, current_thread);

    return; // Execution resumes here when old_thread is scheduled again!
}

3. The Context Switch Mechanism

The low-level context_switch(old_thread, new_thread) routine saves and restores hardware registers. It is written in assembly language because standard high-level language compilers cannot manipulate raw hardware registers directly.

sequenceDiagram
    participant TA as Running Thread A
    participant K as Kernel / Assembly
    participant TB as Running Thread B

    Note over TA: Calls yield() / Trap
    TA->>K: "Push Thread A Registers onto TCB A<br/>Save Thread A Stack Pointer (SP)<br/>Transfer control to Kernel"
    K->>TB: "Restore Thread B Stack Pointer (SP)<br/>Pop Thread B Registers from TCB B<br/>Restore Thread B Program Counter<br/>Transfer control to Thread B"
    Note over TB: Resumes Execution

Context Switch Lifecycle

  1. Save Active Context: Push all current machine registers (PC, SP, general registers) onto old_thread’s stack or TCB.
  2. Update Pointers: Change internal tracking pointer current_thread = new_thread.
  3. Restore Target Context: Pop saved register values from new_thread’s stack or TCB back into physical CPU registers.
  4. Resume Execution: Overwrite the CPU’s Program Counter (PC) with new_thread’s saved PC value. The CPU resumes executing new_thread seamlessly.

4. Preemptive Scheduling

Non-preemptive multithreading relies entirely on user cooperative yielding. If a thread enters a bugged infinite loop (while(1);), the entire CPU core locks up because no other thread gets scheduled.

Modern operating systems mandate Preemptive Scheduling:

  1. Periodic Hardware Timer: The hardware timer chip fires an interrupt at fixed intervals (e.g., every 1ms–10ms).
  2. Involuntary Trap: The timer interrupt forces the currently running thread into Kernel Mode and jumps to the kernel’s timer interrupt service routine.
  3. Forced Yield: The timer handler automatically invokes yield() on behalf of the running thread, moving it to the Ready Queue and context switching to another thread.
