Paging

Abstract

Paging completely eliminates external fragmentation by dividing both virtual and physical memory into fixed-size chunks called Pages and Page Frames (typically $4\text{ KB}$). The OS maintains a per-process Page Table that maps Virtual Page Numbers (VPN) to physical Page Frame Numbers (PFN). Address translation uses bitwise concatenation rather than addition, yielding fast hardware lookup.

• Category: Fixed-Size Address Translation Architecture
• Primary Unit Size: $4\text{ KB}$ ($2^{12}\text{ bytes}$).
• Key Advantage: Eliminates External Fragmentation entirely (all physical frames are identical in size).

---

Paging Architecture

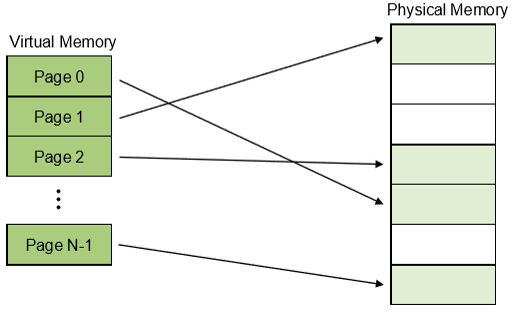

In a paged system, physical memory is partitioned into fixed-sized blocks called Page Frames (PFN), and virtual memory is partitioned into identical fixed-sized blocks called Pages (VPN).

Virtual Address Structure

A Virtual Address ($VA$) is split into two bitfields:

1. Virtual Page Number (VPN): Indexes into the process’s Page Table.
2. Offset: Identifies the exact byte location within the target page.

Because page sizes are powers of two (e.g., $4\text{ KB}=2^{12}\text{ bytes}$), translation does not require arithmetic addition—the MMU simply concatenates the translated PFN with the original Offset.

graph TD
    VA["Virtual Address<br/>(VPN | Offset)"] --> Table["Page Table Lookup<br/>(Index by VPN)"]
    Table --> PFN["Retrieve Page Frame Number (PFN)"]
    PFN --> Concat["Concatenate PFN + Offset"]
    Concat --> PA["Physical RAM Address"]

---

Step-by-Step Address Translation Math

Consider a 32-bit architecture with $4\text{ KB}$ pages:

• Page size = $4\text{ KB}=4096\text{ bytes}=2^{12}\text{ bytes}⟹$ 12 bits reserved for the Offset (hexadecimal range 0x000 to 0xFFF).
• Remaining upper bits = $32-12=20\text{ bits}$ reserved for the Virtual Page Number (VPN) ($2^{20}=1,048,576$ possible pages).

Example Problem

Translate Virtual Address 0x00007468 into a Physical Address given the active Page Table:

1. Extract Offset: The lowest 12 bits (3 hex digits) represent the Offset:
   $\text{Offset}=\text{0x468}$
2. Extract Virtual Page Number (VPN): The remaining upper bits represent the VPN:
   $\text{VPN}=\text{0x00007468}\gg 12=\text{0x7}$
3. Page Table Lookup: Look up entry 0x7 in the process’s Page Table:
   $\text{Page Table Entry}[\text{0x7}]⟹\text{PFN }\text{0x2}$
4. Construct Physical Address: Concatenate PFN 0x2 with Offset 0x468:
   $\text{Physical Address}=(\text{0x2}\times \text{0x1000})+\text{0x468}=\text{0x2468}$

---

Paging Trade-offs & Memory Overhead

flowchart TD

TITLE["Paging Trade-offs"]
subgraph ADV["<b>Advantages</b><br/><br/>• NO External Fragmentation<br/>• Simple Allocation (Free frame list)<br/>• Easy Page Swapping to Disk"]
end

subgraph LIM ["<b>Limitations</b><br/><br/>• Internal Fragmentation<br/>• Double Memory Access Latency<br/>• Large Page Table Overhead"]
end

TITLE --> ADV
TITLE --> LIM

classDef cellStyle font-size:15px,padding:12px;
class TITLE,A,L cellStyle

Advantages

1. Zero External Fragmentation: Physical RAM is allocated from a simple free list of identical fixed-size frames. Any free frame can satisfy any page request.
2. Simplified Allocation & Swapping: Allocating memory or swapping unused pages to disk is fast because all chunks share identical dimensions.

Limitations & Solutions

1. Internal Fragmentation: If a process requests $4097\text{ bytes}$, it receives two full $4\text{ KB}$ pages ($8192\text{ bytes}$), leaving $4095\text{ bytes}$ unused inside the second page.
2. Memory Access Latency: Translating an address requires two physical memory accesses: first to read the Page Table Entry from RAM, then to read the actual target memory address.
   • Solution: Translation Lookaside Buffer (TLB)—a high-speed hardware cache of recent translations inside the MMU.
3. Massive Page Table Overhead: In a 32-bit system with $4\text{ KB}$ pages, each process needs $2^{20}$ Page Table Entries. At $4\text{ bytes}$ per entry, each process consumes $4\text{ MB}$ of RAM strictly for its Page Table!
   • Solution: Hierarchical / Multilevel Page Tables.

---
