Encoder & Decoder

Abstract

Encoders and Decoders are fundamental code-converting combinational circuits. A Binary Encoder compresses $2^N$ input lines into an $N$-bit binary code under the operational assumption that at most one input is active. Conversely, an $N$-to-$2^N$ Decoder expands an $N$-bit binary select input into $2^N$ one-hot active output lines governed by an enable signal ($G$ or $EN$). Decoders serve as the backbone of memory address decoding, device assertion, and minterm generation.

---

Binary Encoders

An Encoder performs the reverse operation of a decoder. It accepts $2^N$ input lines ($I_0,I_1,\dots ,I_{2^N-1}$) and converts the active input index into an $N$-bit binary output code $(y_{n-1},\dots ,y_0)$.

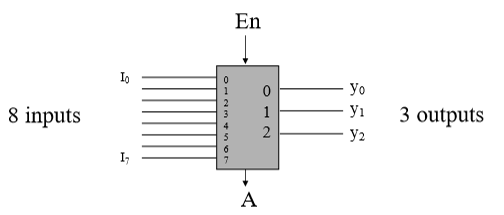

Binary Encoder Symbol and Internal Logic Structure

Functional Assumption & Active Output Flag

A basic binary encoder assumes that at most one input $I_i$ is HIGH ($1$) at any given time. An auxiliary Active Flag ($A$) output signals whether at least one input line is currently asserted.

Mathematical Definition

For an enabled encoder ($EN=1$):

$$(y_{n-1},\dots ,y_0)=\{\begin{array}{ll}i& \text{if }{I}_i=1\text{ and }EN=1\\ 0& \text{otherwise}\end{array}$$ $$A=\{\begin{array}{ll}1& \text{if }EN=1\text{ and }\exists i\text{ such that }{I}_i=1\\ 0& \text{otherwise}\end{array}$$

Detailed Logic Schematics for a 4-to-2 Binary Encoder

---

Decoders ($N\to 2^N$)

A Decoder decodes an $N$-bit binary input code (referred to as Select inputs $S$) to activate exactly one of $2^N$ output lines.

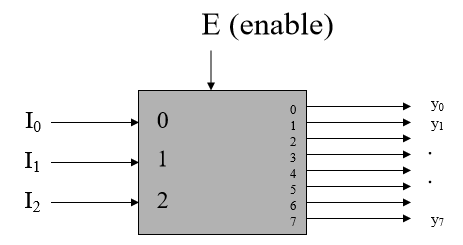

N-to-2^N Decoder Block Diagram with Enable Line

One-Hot Output Behavior

When the enable signal is active ($EN=1$ or $G=1$), the decoder outputs operate in a one-hot configuration: exactly one output line is asserted HIGH ($1$), while all other $2^N-1$ output lines remain LOW ($0$).

$$\text{Output }{y}_i=\{\begin{array}{ll}1& \text{if }EN=1\text{ and }(S_{n-1},\dots ,S_0{)}_2=i\\ 0& \text{otherwise}\end{array}$$

Enable Line ( $G$ / $EN$) Gating

If $EN=0$ (or $G=0$), all outputs are forced to $0$, disabling the driven devices regardless of the select inputs.

Logic Truth Table for Standard Decoders

---

Decoder Logic Equations & Architectures

The enable signal $G$ acts as a product factor across all output minterm equations:

1:2 Decoder ($1$ Select, $2$ Outputs)

$$\begin{array}{rl}{Y}_0& =G\cdot S^{\prime }\\ Y_1& =G\cdot S\end{array}$$

2:4 Decoder ($2$ Selects, $4$ Outputs)

$$\begin{array}{rl}{Y}_0& =G\cdot S_1^{\prime }\cdot S_0^{\prime }\\ Y_1& =G\cdot S_1^{\prime }\cdot S_0\\ Y_2& =G\cdot S_1\cdot S_0^{\prime }\\ Y_3& =G\cdot S_1\cdot S_0\end{array}$$

3:8 Decoder ($3$ Selects, $8$ Outputs)

$$\begin{array}{rl}{Y}_0& =G\cdot S_2^{\prime }\cdot S_1^{\prime }\cdot S_0^{\prime }\\ Y_1& =G\cdot S_2^{\prime }\cdot S_1^{\prime }\cdot S_0\\ Y_2& =G\cdot S_2^{\prime }\cdot S_1\cdot S_0^{\prime }\\ Y_3& =G\cdot S_2^{\prime }\cdot S_1\cdot S_0\\ Y_4& =G\cdot S_2\cdot S_1^{\prime }\cdot S_0^{\prime }\\ Y_5& =G\cdot S_2\cdot S_1^{\prime }\cdot S_0\\ Y_6& =G\cdot S_2\cdot S_1\cdot S_0^{\prime }\\ Y_7& =G\cdot S_2\cdot S_1\cdot S_0\end{array}$$

---

Decoder Applications

Decoders are fundamental building blocks in computer memory architectures and bus controllers:

1. Memory Address Decoding: Converts an $N$-bit memory address from the CPU bus into a single active word line select signal in RAM/ROM chips.
2. Device Assertion / Chip Select (CS): Routes control signals to assert specific peripheral devices connected to a shared system bus.
3. Universal Minterm Generator: Because each decoder output line generates a unique minterm $m_i=S_{n-1}\dots S_0$, any arbitrary $N$-variable Boolean function can be implemented by feeding the relevant decoder output lines into an OR gate.

---
