Ternary Search Tree

Abstract

A Ternary Search Tree (TST) is a hybrid data structure that combines the prefix-searching logic of a Multiway Trie with the space-efficient storage of a Binary Search Tree (BST). Each node stores a single character and has exactly three potential children: Left, Middle, and Right.

• Category: Hybrid Character Branching Tree
• Branching Factor: Exactly 3 pointers per node (leftChild, middleChild, rightChild).
• Key Advantage: Eliminates the empty pointer array overhead of Multiway Tries while retaining prefix searching capabilities.

---

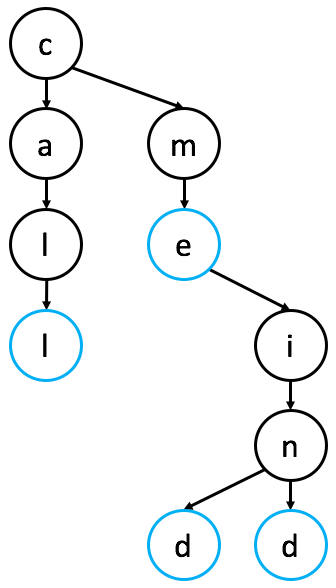

Structural Logic

In a TST, the relationship between a node and its children is determined by character comparisons and word progression:

• Left Child: Stores characters that are alphabetically smaller than the current node’s character.
• Right Child: Stores characters that are alphabetically larger than the current node’s character.
• Middle Child: Represents the next character in the current word string.
• Word Nodes: Nodes representing the end of a valid word are marked (e.g., colored blue).

---

Core Operations

Find(key)

To search for a key, compare the current character of the key with the current node’s label:

• Key Char < Node Label: Move to the Left child.
• Key Char > Node Label: Move to the Right child.
• Key Char == Node Label:
  • If this is the last character of the key, check if the node is a word-node.
  • Otherwise, move to the Middle child and advance to the next character in the key.

Algorithm 49 Ternary Search Tree Find Operation

procedure Find(key, root)

$node \gets root$

$idx \gets 0$

while $node \neq \text{NULL}$and$idx < \text{length}(key)$ do

$c \gets key[idx]$

if $c < node.\text{label}$ then

$node \gets node.\text{leftChild}$

else if $c > node.\text{label}$ then

$node \gets node.\text{rightChild}$

else

if $idx == \text{length}(key) - 1$ then

return node.isWordNode

$node \gets node.\text{middleChild}$

$idx \gets idx + 1$

return $\text{false}$

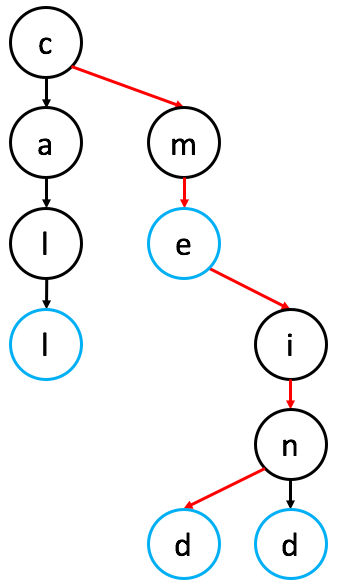

Walk-Through Example (Success)

Searching for the word "mid":

1. Start with node as root ('c') and letter as 'm'.
2. 'm' > 'c', so move to right child ('m').
3. 'm' == 'm', advance to middle child ('e') and letter 'i'.
4. 'i' > 'e', so move to right child ('i').
5. 'i' == 'i', advance to middle child ('n') and letter 'd'.
6. 'd' < 'n', so move to left child ('d').
7. 'd' == 'd', last letter reached, and node is marked as word-node $\to$ Success!

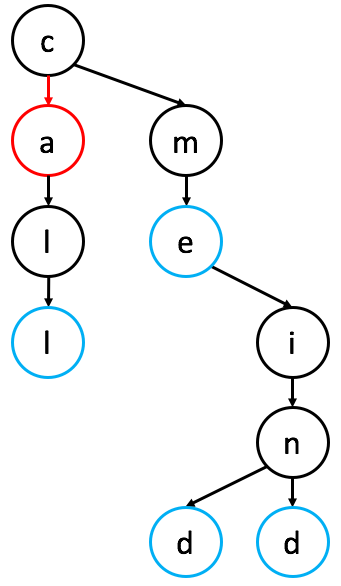

Walk-Through Example (Failure)

Searching for the word "cme":

1. Start with node as root ('c') and letter as 'c'.
2. 'c' == 'c', move to middle child ('a') and letter 'm'.
3. 'm' > 'a', but node ('a') has no right child $\to$ Failure!

---

Insert(key)

Compare the current character with the node’s label:

• Key Char < Node Label: Move Left. If NULL, create a new Left child and build a Middle-child “spine” for remaining characters.
• Key Char > Node Label: Move Right. If NULL, create a new Right child and build a Middle-child “spine” for remaining characters.
• Key Char == Node Label: If last character, mark as word-node. Otherwise, move Middle and advance character.

Algorithm 50 Ternary Search Tree Insertion

procedure Insert(key, root)

$node \gets root$

$idx \gets 0$

while $idx < \text{length}(key)$ do

$c \gets key[idx]$

if $c < node.\text{label}$ then

if $node.\text{leftChild} == \text{NULL}$ then

$node.\text{leftChild} \gets \text{CreateNode}(c)$

$node \gets node.\text{leftChild}$

else if $c > node.\text{label}$ then

if $node.\text{rightChild} == \text{NULL}$ then

$node.\text{rightChild} \gets \text{CreateNode}(c)$

$node \gets node.\text{rightChild}$

else

if $idx == \text{length}(key) - 1$ then

$node.\text{isWordNode} \gets \text{true}$

return

if $node.\text{middleChild} == \text{NULL}$ then

$node.\text{middleChild} \gets \text{CreateNode}(key[idx+1])$

$node \gets node.\text{middleChild}$

$idx \gets idx + 1$

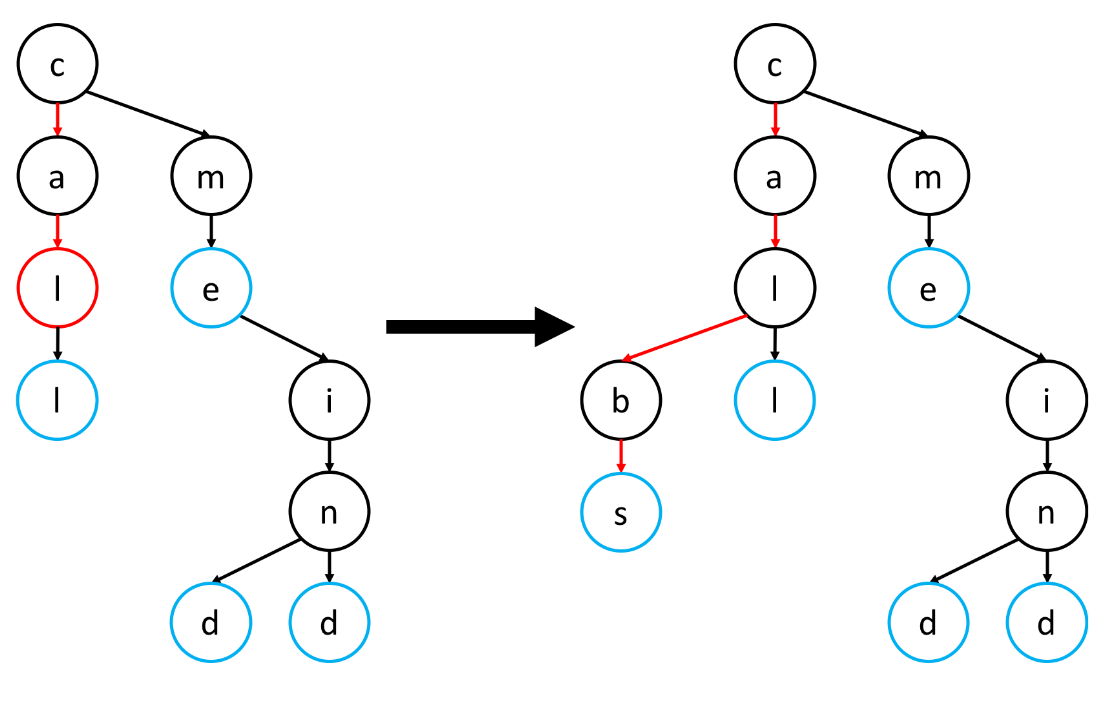

Walk-Through Example

Inserting the word "cabs" into an existing tree:

1. Start at root ('c') with letter 'c'. Match $\to$ move to middle ('a'), next letter 'a'.
2. Match at ('a') $\to$ move to middle ('l'), next letter 'b'.
3. 'b' < 'l', but 'l' has no left child $\to$ create left child ('b').
4. Move to ('b'), create middle child ('s'), mark as word-node.

---

Remove(key)

Use search logic to locate the target node representing the last character of the key. Unmark its isWordNode status.

Algorithm 51 Ternary Search Tree Removal

procedure Remove(key, root)

$targetNode \gets$ LocateTerminalNode(key, root)

if $targetNode \neq \text{NULL}$and$targetNode.\text{isWordNode}$ then

$targetNode.\text{isWordNode} \gets \text{false}$

---

Advanced Features

Alphabetical Iteration

Because TSTs maintain the BST property ($\text{Left}<\text{Node}<\text{Right}$), an In-Order Traversal retrieves words in sorted order.

Algorithm 52 TST Ascending In-Order Traversal

procedure AscendingInOrder(node)

if node == $\text{NULL}$ then

return

AscendingInOrder($node.\text{leftChild}$)

if node.isWordNode then

Output($node.\text{word}$)

AscendingInOrder($node.\text{middleChild}$)

AscendingInOrder($node.\text{rightChild}$)

Auto-Complete

To find all words starting with a prefix:

1. Traverse the TST to the node representing the end of the prefix.
2. Perform an AscendingInOrder traversal on that node’s middle child subtree.

---

Evaluation for Lexicon ADT

Feature	BST (AVL)	Multiway Trie	Ternary Search Tree
Search (Avg)	$O(\log n)$	$O(k)$	$O(k+\log n)$
Space Efficiency	High	Very Low	High
Alphabetical	Yes	Yes	Yes
Auto-Complete	No	Yes	Yes

Key Takeaways

• Space over Speed: TSTs avoid the “wasted pointer” problem of Multiway Tries because each node only has 3 pointers instead of $|\Sigma |$ (e.g., 26 or 256).
• Balance Matters: Like a BST, a TST can become skewed if words are inserted in a poor order. Shuffling words before insertion is a common optimization.
• The Middle Ground: It provides the prefix-matching power of a Trie with the memory footprint of a Tree.

---
