Sudoku Example

Abstract

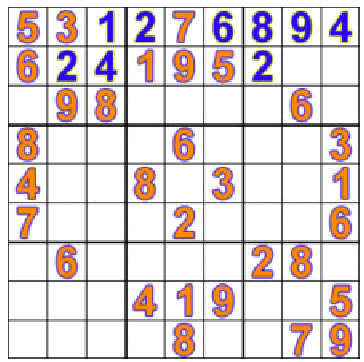

Given a partially-filled Sudoku puzzle, find a completion satisfying the usual Sudoku constraints.

• Category: Backtracking / Constraint Satisfaction
• Input: A partially filled $9\times 9$ grid
• Output: A grid with all squares filled, or an indication no solution exists
• Paradigm: Backtracking (fill in order, prune on constraint violation)
• Typical use cases: the other canonical constraint-satisfaction example alongside 8 Queens; generalizes to Latin squares and graph-coloring-style problems

---

Problem Specification

• Instance: A partially filled puzzle.
• Solution: A grid with all squares filled with the numbers 1 through 9.
• Constraint: No repeats of any number within a given sub-square, row, or column.
• Decision: Find a solution satisfying the constraint (or determine none exists).

---

Candidate Strategies / Approaches

Exhaustive Search ✘

Try every possible digit in every blank cell, independently, then check the whole grid against all constraints at the end. For $b$ blank cells, this is $O(9^b)$ — the constraints are only used to validate a finished guess, never to cut the search short.

Backtracking ✔

• Fill in the first available cell with the least possible number, and recurse.
• If a cell is reached that can’t be legally filled with any number, backtrack to the last decision point and try the next-largest possible number there instead (if one is available).

Key Idea

Unlike Exhaustive Search, backtracking checks the row/column/sub-square constraints as each digit is placed, not just at the end — an illegal digit is rejected immediately, so the search never wastes time filling in the other 80 cells behind a guess that was already doomed.

---

Pseudocode (Chosen Approach)

Algorithm 5 Sudoku Backtracking

Input: Grid $G$ (partially filled), cell index $i$ (in some fixed cell ordering)

Output: A boolean value: whether the remaining cells from $i$ onward can be completed

procedure SolveSudoku($G, i$)

if $i$ is past the last cell then

return true

if cell $i$ is already filled then

return SolveSudoku($G, i+1$)

for $d = 1 \dots 9$ do

if placing $d$ at cell $i$ violates no row/column/sub-square constraint then

Place $d$ at cell $i$

if $SolveSudoku(G, i+1)$ is True then

return true

Remove $d$ from cell $i$//backtrack

return false

Variables & Data Structures

Name	Type	Purpose
G	$9\times 9$ grid	The puzzle state, partially filled
i	Cell index	Which cell is currently being considered, in a fixed traversal order
d	Digit, $1$–$9$	The candidate value being tried for cell i

Helper Functions / Operations Used

• Constraint check — verify digit d doesn’t already appear in cell $i$‘s row, column, or $3\times 3$ sub-square; $O(1)$ (bounded by grid size).
• Backtrack (remove d) — undo a placement when it leads to a dead end further down the recursion, restoring the grid to try the next candidate digit.

---

Proof of Correctness / Optimality

SolveSudoku only ever places a digit that satisfies all three constraints at the moment of placement, so no branch it explores can violate the row/column/sub-square rules. It tries every digit $1$–$9$ at each cell in order, backtracking to try the next digit whenever a placement leads to failure further down the recursion — so every legally reachable completion is eventually tried. Since there are finitely many cells and finitely many digits per cell, and the recursion always advances to $i+1$ on success, the search terminates.

---

Time & Space Complexity Analysis

Worst-case, naive backtracking Sudoku solving remains exponential — generalized Sudoku (on an $n^2\times n^2$ grid) is known to be NP-complete, so no polynomial-time algorithm is expected for the general case. In practice, the constraint checks prune the search so aggressively that even the hardest standard $9\times 9$ puzzles solve near-instantly; this is a case where empirical performance is far better than the worst-case bound suggests.

---

Drawbacks / Constraints

• Plain backtracking can still be slow on adversarially hard puzzles without additional heuristics — e.g. picking the cell with the fewest remaining legal candidates first (minimum-remaining-values), rather than a fixed left-to-right cell order, typically prunes much faster in practice.
• Doesn’t scale to generalized $N\times N$ Sudoku — the general problem is NP-complete, so worst-case exponential blowup is expected as $N$ grows, regardless of how well-tuned the backtracking is.

---

References / Links

• Backtracking
• 8 Queens
