Bellman-Ford Algorithm

Abstract

Given a graph with vertices $v_0,v_1,\dots ,v_{n-1}$ (source $v_0$) and possibly negative edge weights, find the shortest distance from $v_0$ to every other vertex — or detect that no shortest path even exists, because a negative cycle is reachable.

• Category: Dynamic Programming / Graph Shortest Path
• Input: A graph $G$ with $n$ vertices, possibly negative edge weights, source $v_0$
• Output: Either "NEGATIVE CYCLE", or the shortest distance from $v_0$ to every vertex
• Paradigm: Dynamic Programming, budgeting the number of edges allowed
• Typical use cases: graphs with negative weights in general (not just DAGs); detecting negative cycles specifically (e.g. currency arbitrage detection, where a negative cycle means a risk-free profit loop exists)

---

Negative Cycles

Definition A negative cycle is a cycle in a graph such that the sum of its edge weights is negative.

From Dijkstra’s, one of its main constraints is that it only works with non-negative edge weights.

From the image, the cycle $A,B,C,E$ forms a negative cycle, since $(-2)+4+(-8)+4=-2$.

If a graph has negative edge weights and cycles, finding the shortest path can be problematic: with a negative cycle, there are paths whose lengths are unbounded from below — you can always go around the cycle one more time and get a “shorter” path, forever.

---

Problem Specification

• Instance: Graph $G$ with vertices $v_0,\dots ,v_{n-1}$, possibly negative edge weights, source $v_0$.
• Solution Format: Either a negative-cycle report, or an array of shortest distances.
• Constraints: None on the input weights (unlike Dijkstra’s).
• Objective / Goal: Find the true shortest distance to every vertex, or correctly detect that no finite shortest distance exists for some vertex.

---

Candidate Strategies / Approaches

Dijkstra’s Algorithm ✘

If there are no negative cycles, Dijkstra’s can technically be adapted to find shortest paths — but its efficiency guarantee relies entirely on all edge weights being non-negative. With negative edge weights present (even without a negative cycle), Dijkstra’s runtime can blow up to exponential, since a vertex may need to be revisited and improved many times after being “finalized” too early.

Dynamic Programming (Bellman-Ford) ✔

Since DP always solves shortest paths on DAGs by processing vertices in a fixed (topological) order — see Shortest Path in a DAG — the natural generalization to graphs with cycles is to put a budget $T$ on how many edges we’re allowed to use. Budgeting the path length effectively “unrolls” the graph into layers indexed by $t=0,1,\dots ,T$, sidestepping the cycle problem entirely: you can never revisit an earlier, smaller budget layer.

---

Dynamic Programming Solution

1. Subproblems

Let $B[i,t]$ be the length of the shortest path from $v_0$ to $v_i$ using at most $t$ edges.

2. Base Cases (assuming no negative cycles)

$B[0,t]=0B[i,0]=\infty ,\text{ for }i\ge 1$

3. Recursion

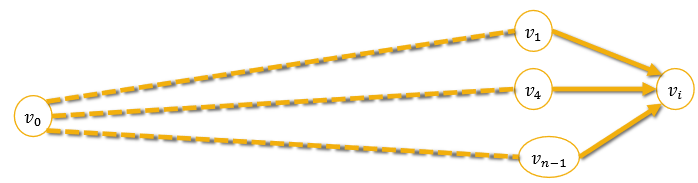

To compute $B[i,t]$: ask which vertex is the second-to-last vertex on the shortest path from $v_0$ to $v_i$ using at most $t$ edges.

$$\begin{array}{rl}\text{Case 0}& :v_0\text{ is the second-to-last vertex}\\ \text{Case 1}& :v_1\text{ is the second-to-last vertex}\\ & ⋮\\ \text{Case }n-1& :v_{n-1}\text{ is the second-to-last vertex}\end{array}$$ $$B[i,t]=\min \{\begin{array}{l}\\ B(0,t-1)+w(v_0,v_i)\\ B(1,t-1)+w(v_1,v_i)\\ \\ \dots \\ \\ \\ B(n-1,t-1)+w(v_{n-1},v_i)\end{array}=\underset{(v_j,v_i)\in E}{\min }[B(j,t-1)+w(v_j,v_i)]$$

4. Ordering — What’s the Maximum Budget?

Answer: $n-1$. Assuming no negative cycles, every shortest path must be a simple path (never repeats a vertex) — since repeating a vertex would mean a cycle exists on the path, and a non-negative cycle could only be removed to make the path shorter or equal, while a negative cycle would already violate the “no negative cycles” assumption. A simple path in a graph with $n$ vertices has at most $n-1$ edges. So order $t$ from $0,1,\dots ,n-1$.

Detecting Negative Cycles

What if we don’t know beforehand whether the graph has negative cycles? If there are no negative cycles, the array values will never improve after $t$ grows past $n-1$ (there’s no longer/better simple path to find). So:

$\text{If there exists }i\text{ such that }B[i,n-1]\ne B[i,n],\text{ then a negative cycle exists.}$

---

Bellman-Ford Algorithm

Algorithm 16 Bellman Ford

procedure BFDP($G, v_0$)

$B[0,0] = 0$

$B[i, 0] = \infty$ for all $i \neq 0$

for $t = 1, \dots , n$ do

for $i = 0, \dots, n-1$ do

$B[i,t] = \underset{(v_j, v_i) \in E}{\min}[B[j, t-1] + w(v_j, v_i)]$

for $i = 0, \dots, n-1$ do

if $B[i, n-1] \neq B[i,n]$ then

return "Negative Cycle"

return $[B[0, n], B[1, n], \dots, B[n-1, n]]$

Variables & Data Structures

Name	Type	Purpose
B	2D array, $n\times (n+1)$	B[i][t] = shortest distance from $v_0$ to $v_i$ using at most $t$ edges
t	Budget	Number of edges allowed so far, from $0$ up to $n$ (one extra round beyond $n-1$, used purely to detect negative cycles)

Helper Functions / Operations Used

• Min over incoming edges — for each $(i,t)$, scan every edge $(v_j,v_i)\in E$; $O({\mathrm{deg}}^{-}(v_i))$ per cell, summing to $O(E)$ per full round of $t$.

---

Proof of Correctness

Claim (assuming no negative cycle): $B[i,t]$ equals the true shortest distance from $v_0$ to $v_i$ using at most $t$ edges.

• Base case: $B[0,0]=0$ (staying at the source uses 0 edges, correctly length 0), $B[i,0]=\infty$ for $i\ne 0$ (no vertex besides the source is reachable with 0 edges).
• Inductive Hypothesis: $B[j,t-1]$ is correct for every $j$.
• Inductive Step: consider the true shortest path to $v_i$ using at most $t$ edges. If $v_i=v_0$, the trivial 0-edge path already achieves length 0, and no path can do better without a negative cycle, so $B[0,t]=0$ remains correct. Otherwise ($i\ne 0$), that path — however many edges it actually uses, up to $t$ — arrives via some last edge $(v_j,v_i)$, and the portion before that last edge is itself a shortest path to $v_j$ using at most $t-1$ edges (since removing the last edge removes exactly one edge from the budget). By the Inductive Hypothesis, that sub-path’s length is exactly $B[j,t-1]$. Since $B[i,t]$ takes the minimum of $B[j,t-1]+w(v_j,v_i)$ over every possible predecessor $j$, it correctly recovers the shortest such path.

Negative cycle detection is correct because, absent a negative cycle, every shortest path is simple (at most $n-1$ edges), so $B[i,\cdot ]$ must stabilize by $t=n-1$ and never improve again — meaning any observed improvement between $t=n-1$ and $t=n$ can only be explained by a cycle that keeps helping, which (since it does help, i.e. strictly decreases the distance) must be a negative cycle.

---

Time & Space Complexity Analysis

General Case

For a graph $G$ with $n$ vertices and $m$ edges:

$O(n(n+m))$

(the outer loop runs $n$ times for $t$; each round does $O(n+m)$ work — $O(n)$ for the vertices themselves, $O(m)$ summed over all the incoming-edge scans).

Assuming $n=O(m)$ (a connected graph, roughly):

$O(nm)=O(|V||E|)$

	Complexity	Notes
Time	$O(\Vert V\Vert E\Vert )$	Substantially slower than Dijkstra’s Algorithm’s $O((\Vert V\Vert +\Vert E\Vert )\log \Vert V\Vert )$ — the cost of tolerating negative weights
Space	$O(n^2)$ for the full B table	Reducible to $O(n)$ (two rows at a time) if negative-cycle detection isn’t needed and only final distances matter

---

Drawbacks / Constraints

• Much slower than Dijkstra’s. Only use Bellman-Ford when negative edge weights are actually possible — if all weights are known non-negative, Dijkstra’s Algorithm is strictly better.
• Detects that a negative cycle exists, but not automatically which vertices/edges form it. Recovering the actual cycle needs additional bookkeeping (e.g. tracing back predecessor pointers from a vertex whose distance kept improving past $t=n-1$).
• Preconditions: the correctness proof above assumes no negative cycle for the “true shortest path” claim to even make sense — the algorithm’s real job when a negative cycle is present is just to detect that fact, not to report a (nonexistent) finite shortest distance.

---

References / Links

• Dynamic Programming
• Dijkstra’s Algorithm
• Shortest Path in a DAG
