Maximum Flow Example

Abstract

Given a directed graph where edges have capacities, and two special vertices — a source $s$ and a sink $t$ — how much “flow” can be pushed from $s$ to $t$ without exceeding any edge’s capacity?

• Category: Network Flow / Combinatorial Optimization (also formulable as Linear Programming)
• Input: Directed graph with non-negative edge capacities $c(e)$; source $s$, sink $t$
• Output: An assignment of flow values $f(e)$ to every edge, maximizing total flow
• Paradigm: Augmenting-path method (Ford-Fulkerson), improving a flow via a residual graph
• Typical use cases: bipartite matching, project/task selection, image segmentation, traffic and logistics routing — anything shaped like “maximize throughput subject to capacity limits”

---

Problem Specification

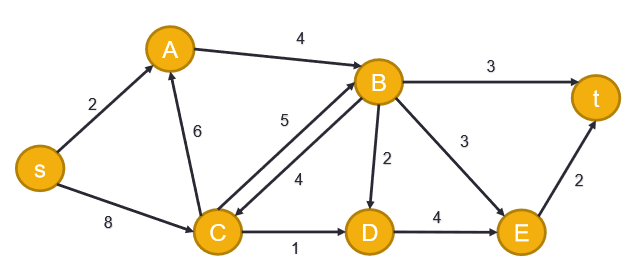

• Instance: Directed graph with non-negative edge weights called capacities. Two vertices $s$ (source), $t$ (sink).
• Solution Format: An assignment of non-negative values (flow) to each edge.
• Constraints:
  • Capacity: for each edge $e$, $f(e)\le c(e)$.
  • Conservation: for each vertex $u\ne s,t$, ${\sum }_{e\in in(u)}f(e)={\sum }_{e^{\prime }\in out(u)}f(e^{\prime })$ (flow in equals flow out).
• Objective: total flow out of $s$ (equivalently, total flow into $t$).
• Goal: Maximize.

---

Candidate Strategies / Approaches

Linear Programming (Simplex) ✔ — works, but not the specialized choice

Since every constraint above (capacity, conservation) and the objective (total flow) are linear, Max Flow is technically solvable directly as an instance of Linear Programming. But the problem’s graph structure supports a more specialized, more efficient combinatorial algorithm instead.

Ford-Fulkerson Method ✔ (chosen)

Start with a trivial solution, and keep trying to make it better.

• Trivial flow: zero flow along every edge.
• Better than zero: any path of positive-capacity edges from $s$ to $t$.
• How much better? Send the minimum capacity of any edge along that path (the bottleneck) — that’s how much extra flow the whole path can carry.

---

The Ford-Fulkerson Method

The Residual Graph

Ford-Fulkerson’s insight: represent the problem of improving a flow as another flow problem, on a residual graph. If $f(e)$ is the current flow on edge $e$ and $c(e)$ its capacity, the residual graph changes that edge’s capacity to $c(e)-f(e)$, and adds $f(e)$ to the capacity of the reverse edge (representing the option to “undo” flow already sent).

Key Observation

Let $f$ be any flow in the original graph, and $f^{\prime }$ be any flow in the residual network with respect to $f$. Then $f+f^{\prime }$ is a valid flow in the original network, and:

$Flow(f+f^{\prime })=Flow(f)+Flow(f^{\prime })$

So we can keep finding flow in the residual network, update the residual graph, and repeat — until we can’t increase the flow any further.

Termination and the Min Cut

We stop when there’s no path from $s$ to $t$ left in the residual graph. Let $S$ be the set of all vertices reachable from $s$ in the residual graph at that point, and $T=V-S$ the unreachable vertices ($t\in T$, since we just said there’s no path to it).

Every edge $e=(u,v)$ with $u\in S$ and $v\in T$ can’t be in the residual graph (or $v$ would be reachable too) — meaning every such edge is being used at full capacity. Let $Cut(S,T)$ be the total capacity of all such crossing edges. Then, at termination:

$Flow(f)=Cut(S,T)$

---

Pseudocode (Chosen Approach)

Algorithm 44 Network Flow

procedure FF($G, c, s, t$)

while there is a path in the residual graph do

Find a path in the residual graph (DFS) from $s$ to $t$

Augment the flow along every edge in this path

Create new residual graph

Variables & Data Structures

Name	Type	Purpose
f(e)	Number, per edge	Current flow assigned to edge $e$
Residual graph	Graph	Same vertices, with each edge’s remaining capacity $c(e)-f(e)$, plus a reverse edge of capacity $f(e)$ to allow “undoing” flow

Helper Functions / Operations Used

• Find an $s$-$t$ path in the residual graph — Depth First Search (DFS) (as specified), $O(|V|+|E|)$ per call.
• Augment along the path — push flow equal to the path’s bottleneck (minimum residual capacity along it); $O(\text{path length})$.

---

Proof of Correctness / Optimality

Weak duality (needed first): for any flow $f$ and any $s$-$t$ cut $(S,T)$, $Flow(f)\le Cut(S,T)$. Every unit of flow from $s$ to $t$ must cross from $S$ to $T$ somewhere, and no edge can carry more than its capacity — so total flow can never exceed any cut’s total capacity.

What Ford-Fulkerson shows at termination: the algorithm stops precisely when no augmenting path remains. At that point, taking $S$ = vertices reachable from $s$ in the residual graph and $T=V-S$, every crossing edge is fully saturated, giving $Flow(f)=Cut(S,T)$ exactly (shown above).

Putting them together — the Max-Flow Min-Cut Theorem: since $Flow(f)\le Cut(S,T)$ holds for every cut, and Ford-Fulkerson exhibits a flow $f$ and a specific cut $(S,T)$ with equality, two things follow simultaneously:

• $f$ is a maximum flow — no flow can exceed $Cut(S,T)$, and $f$ already equals it.
• $(S,T)$ is a minimum cut — no cut can be smaller than $Flow(f)$, and $(S,T)$ already equals it.

So Ford-Fulkerson doesn’t just find a flow it can’t improve — it provably finds the maximum flow, with a matching minimum cut as a certificate.

---

Time & Space Complexity Analysis

General Case

At most $O(W|V|)$ iterations of the outer loop, each costing $O(|E|)$ time (one DFS), giving:

$O(W|V||E|)$

Where does $W|V|$ come from?

$W$ (not explicitly defined in the source) is the maximum edge capacity. Each augmenting path increases total flow by at least 1 if capacities are integers, and the maximum possible flow value is bounded by (the number of edges leaving $s$) $\times$ (max capacity) $\le O(|V|\cdot W)$ in the worst case — giving at most $O(|V|W)$ iterations before the flow can’t increase any further, each costing $O(|E|)$ for the DFS.

	Complexity	Notes
Time	$O(W\Vert V\Vert E\Vert )$	Pseudo-polynomial — see Drawbacks below
Space	$O(\Vert V\Vert +\Vert E\Vert )$	The residual graph, same size as the original plus reverse edges

---

Drawbacks / Constraints

• Pseudo-polynomial runtime. $O(W|V||E|)$ depends on the numeric value of capacities, not just the graph’s size — with large capacities, this can be slow, matching the same caveat seen in Knapsack Problem’s $O(nC)$.
• Can fail to terminate with irrational capacities. If edge capacities aren’t required to be rational, Ford-Fulkerson’s augmenting-path process can (in pathological cases) run forever without converging to the max flow at all.
• Path choice matters. Using DFS to find any augmenting path (as specified) can be much slower in practice than always choosing the shortest augmenting path — the Edmonds-Karp variant (BFS instead of DFS) guarantees a strongly polynomial $O(V{E}^2)$ bound, independent of capacity values, fixing both the pseudo-polynomial and non-termination issues above.

---
