Graphs

ABSTRACT

A graph is a mathematical structure used to model pairwise relations between objects. It consists of a set of vertices (nodes) and a set of edges connecting them. Graphs are fundamental to computer science, used in everything from network routing to social media analysis.

---

Types of Graphs

Directed Graphs

A directed graph (or digraph) consists of:

• A nonempty set of vertices $V$.
• A set of directed edges $E$. Each edge is an ordered pair $(u,v)$, representing a one-way connection from vertex $u$ to vertex $v$.

Undirected Graphs

An undirected graph consists of:

• A nonempty set of vertices $V$.
• A set of undirected edges $E$. Each edge is an unordered pair $\{u,v\}$, representing a two-way connection between $u$ and $v$.

---

Special Types of Undirected Graphs

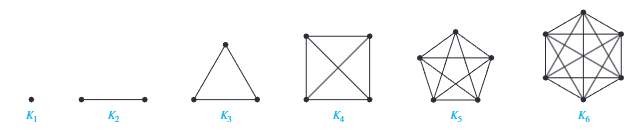

Complete Graph ($K_n$)

A complete graph is an undirected graph where every pair of distinct vertices is connected by a unique edge.

• Density: This is the densest possible simple graph.
• Edge Count: Since every vertex connects to every other vertex, the total edges are: $$\boxed{|E|=\left(\genfrac{}{}{0ex}{}{n}{2}\right)=\frac{n(n-1)}{2}}$$

Bipartite Graph

A graph whose vertices can be divided into two disjoint sets $V_1$ and $V_2$ such that every edge connects a vertex in $V_1$ to one in $V_2$.

• Constraint: No two vertices within the same set are adjacent.
• Use Case: Modeling relationships between two different categories (e.g., Students and Classes).

---

Trees

Trees are a highly restricted but extremely common subset of graphs.

Undirected Tree

An undirected graph that is connected and contains no cycles.

• See more: Undirected Trees

Directed Tree (Rooted Tree)

A directed graph where one vertex is the root (in-degree 0) and every other vertex has exactly one incoming edge (in-degree 1).

• See more: Directed Tree (Rooted Tree)

---

Simple Labeled Graphs

A graph is considered simple if it lacks the following complexities:

• Self-Loops: An edge that connects a vertex to itself.

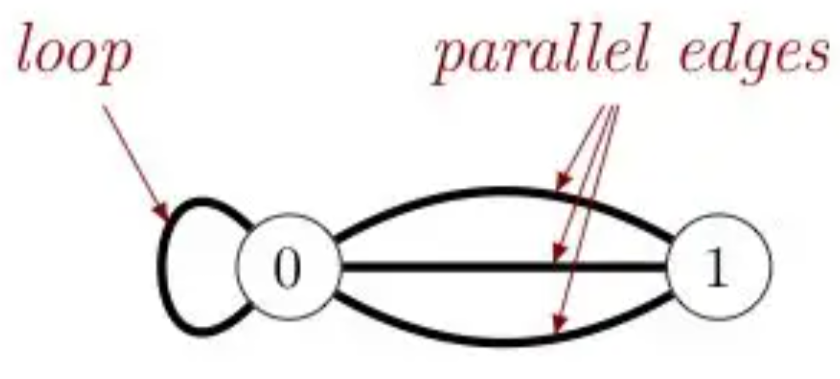

• Parallel Edges: Multiple edges between the same two vertices (in the same direction for directed graphs).

Encoding Simple Directed Graphs

For $n$ vertices, each vertex can potentially point to any of the other $n-1$ vertices.

• Potential Edges: $n(n-1)$
• Total Possible Graphs: $2^{n(n-1)}$
• Bits Required: $n(n-1)$ bits.

Encoding Simple Undirected Graphs

For $n$ vertices, an edge can exist between any unique pair of vertices.

• Potential Edges: $\left(\genfrac{}{}{0ex}{}{n}{2}\right)=\frac{n(n-1)}{2}$
• Total Possible Graphs: $2^{\left(\genfrac{}{}{0ex}{}{n}{2}\right)}$
• Bits Required: $\left(\genfrac{}{}{0ex}{}{n}{2}\right)$ bits.

---

Graph Representations

The choice of representation depends on the density of the graph (how many edges exist relative to the number of vertices).

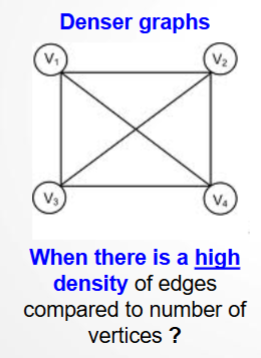

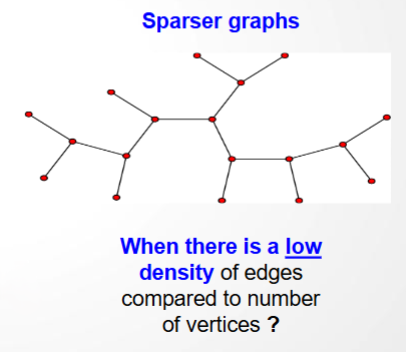

Representation	Memory Efficiency	Best Use Case	Graph for Best use Case
Adjacency Matrix	$O(n^2)$	Dense Graphs (many edges)
Adjacency List	$O(n+E)$	$\Vert E\Vert$

Adjacency Matrix

An $n\times n$ matrix where the entry at row $i$, column $j$ represents the connection from vertex $i$ to vertex $j$.

• Simple Graphs: Entries are $0$ or $1$.
• Parallel Edges: Entries can be integers $>1$.
• Self-Loops: Indicated by non-zero values on the main diagonal.
• Undirected Symmetry: In an undirected graph, the matrix is symmetric ($M_{ij}=M_{ji}$), making the lower triangle a mirror of the upper triangle.

Adjacency List

A collection of lists where each vertex $v$ is associated with a list of its neighbors. In a directed graph, this usually stores outgoing neighbors.

• Adjacent: Two vertices connected by an edge are said to be adjacent.
• Neighbors (Undirected): $\{w:\{v,w\}\in E\}$
• Outgoing Neighbors (Directed): $\{w:(v,w)\in E\}$
• Incoming Neighbors (Directed): $\{w:(w,v)\in E\}$

---
