Lossless Encoding

ABSTRACT

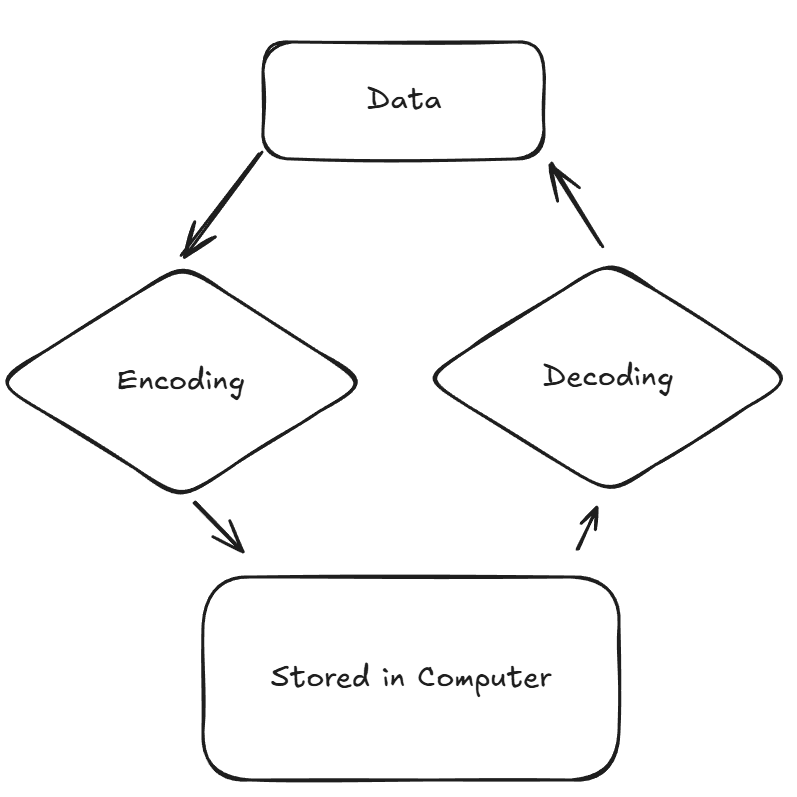

Lossless encoding is a method of data representation that allows the original data to be perfectly reconstructed from the compressed data. To achieve this, the encoding function must be one-to-one (injective), ensuring every unique piece of data maps to a unique binary string.

---

Efficiency in Encoding

When evaluating an encoding algorithm, we measure efficiency in two primary dimensions:

1. Space: The size of the encoded bitstring (compression ratio).
2. Time: The computational complexity required to encode and decode the information.

---

The Mathematical Foundation

For an encoding to be lossless, it must function as a one-to-one mapping. This requirement dictates the minimum number of bits needed to represent a set of data.

Minimum Bit Requirement

If we have a set of data $|Data|$, and we want to encode it into binary strings of length $n$:

1. The number of unique data items must be less than or equal to the total number of available binary strings: $|Data|\le 2^n$

2. Solving for $n$ gives the theoretical lower bound: $\boxed{n\ge \lceil {\log }_2|Data|\rceil }$

There will always exist an encoding of length $\lceil {\log }_2|Data|\rceil$ bits for any finite data set.

---

Encoding as a Function

An encoding of a set of Data is a map $E$ where the domain is the Set of Data and the codomain is a set of binary strings.

Fixed Length Encoding

• Codomain: $\{0,1{\}}^n$ (The finite set of binary strings of length $n$).
• Mechanism: Maps every data element to a string of exactly $n$ bits.
• Usage: Best for random access and simple hardware implementations (e.g., standard ASCII).

Variable Length Encoding

• Codomain: $\{0,1{\}}^{\ast }$ (The infinite set of all binary strings of all possible lengths).
• Mechanism: Maps data elements to strings of varying lengths.
• Usage: Optimized for efficiency based on complexity or frequency.
  • More complex/rare data: Requires more bits.
  • Simpler/frequent data: Requires fewer bits.

NOTE

Variable length encoding is essential for effective data compression, as it allows us to minimize the “average” length of the encoded data.

---

Strategies for Encoding Strings

There are several ways to apply these functional mappings to strings of characters:

• Fixed Length Character-By-Character Encoding For Strings (Fixed Length CBC): Maps each character to a fixed number of bits.
• Variable Length Character-By-Character Encoding for Strings (Variable Length CBC): Maps each character to a variable number of bits (e.g., Huffman Code).
• Strings as Integers: Treats the entire string as a single numerical value to achieve the theoretical optimum of $\lceil {\log }_2|Data|\rceil$.
