Heap

Definition

A Heap is a specialized tree-based data structure that satisfies specific structural and ordering properties. It is the primary data structure used to implement the Priority Queue ADT.

1. Heap Constraints

A Binary Heap must satisfy three core properties:

• Binary Tree Property: Every node has at most 2 children ($0,1,\text{ or }2$).
• Heap Property: For any two nodes $A$ and $B$, if $A$ is the parent of $B$, then $A$ has higher (or equal) priority than $B$.
• Shape Property: The heap is a complete tree. All levels are fully filled except possibly the last level, which must be filled from left to right.

---

2. Min-Heaps vs. Max-Heaps

Priority is determined by the value of the elements. Because priority defines the relationship, duplicate values are allowed; ties are broken arbitrarily.

Feature	Min-Heap	Max-Heap
Ordering	Parent $\le$ Children	Parent $\ge$ Children
Root Node	Minimum value (Highest Priority)	Maximum value (Highest Priority)
Priority Logic	Smaller values have higher priority	Larger values have higher priority

---

3. Core Operations

Peek — $O(1)$

Returns the highest-priority element. Due to the Heap Property, this is always the root.

Push (Insertion) — $O(\log n)$

To add an element while maintaining the Shape and Heap properties:

1. Place the new element in the next open slot (maintaining the complete tree shape).

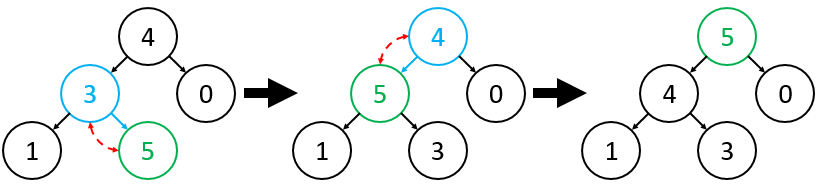

2. Bubble Up: Compare the element with its parent. If it has higher priority, swap them. Repeat until the Heap Property is restored or the element becomes the root.

Pop (Removal) — $O(\log n)$

To remove the highest-priority element:

1. Remove the root element.
2. Replace the root with the last element (rightmost element of the bottom level).

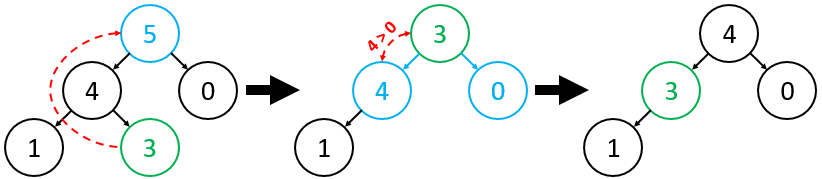

3. Trickle Down: Compare the new root with its children. Swap it with its highest-priority child. Repeat until the element is at a valid position or becomes a leaf.

NOTE

Why swap with the highest-priority child? > When trickling down, you must swap with the highest-priority child to ensure that the new parent of that subtree remains higher in priority than both of its resulting children.

---

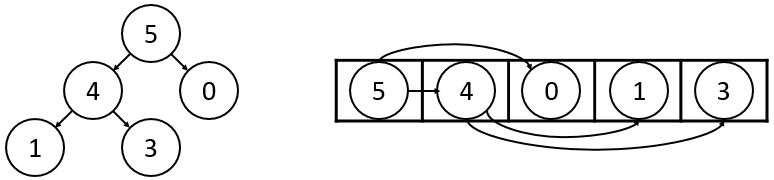

4. Array Implementation

Because heaps are complete trees, they can be stored contiguously in an array without wasted space or the need for pointers.

For an element at index $i$ (using 0-based indexing):

• Parent: $\lfloor \frac{i-1}{2}\rfloor$
• Left Child: $2i+1$
• Right Child: $2i+2$
• Next Open Slot: Index $n$ (where $n$ is the current number of elements).

---

5. Complexity Summary

Operation	Time Complexity (Worst Case)
Peek	$O(1)$
Insert (Push)	$O(\log n)$
Remove (Pop)	$O(\log n)$
Space Complexity	$O(n)$
