Deques

Definition

An Abstract Data Types (ADT) that allows for insertion and removal of elements from both the front and the back. It is essentially a generalized version of a linear list that supports bi-directional growth.

Formal Set of Functions

A Deque is defined by its ability to perform the following six operations:

Function	Description
addFront(element)	Inserts a new element at the beginning of the Deque.
addBack(element)	Inserts a new element at the end of the Deque.
peekFront()	Returns the value of the first element without removing it.
peekBack()	Returns the value of the last element without removing it.
removeFront()	Removes the first element from the Deque.
removeBack()	Removes the last element from the Deque.

---

Implementation Strategies

The functionality of a Deque can be supported by two primary data structures: Doubly-Linked Lists and Circular Arrays.

1. Doubly-Linked List Method

By maintaining a global head and tail pointer, a Doubly-Linked List provides highly efficient end-manipulation.

• Performance: Guaranteed O(1) for all six core operations via pointer rearrangement.
• Memory: No wasted space; memory is allocated dynamically per node.
• Trade-off: Accessing elements in the middle of the list (if required) remains O(n).

2. Circular Array Method

Utilizes a backing array with wrapping head and tail indices.

• Performance: O(1) for peek and remove. add operations are Amortized O(1), occasionally spiking to O(n) during a resize/copy event.
• Memory: May waste memory by pre-allocating large blocks to accommodate future growth.
• Trade-off: Provides O(1) random access to middle elements using modular arithmetic.

---

Comparison of Backing Structures

Feature	Doubly-Linked List	Circular Array
End Operations	Always O(1)	Amortized O(1)
Random Access	O(n)	O(1)
Memory Overhead	Pointer storage for every node	Unused allocated capacity
Worst-Case Add	O(1)	O(n) (during resize)

---

Adding and Removing Operations

In a Deque, operations occur at the boundaries of the list. The logic depends on whether you are interacting with the Head or the Tail.

• Front Operations:
  • addFront: The new element becomes the new “first” node/index.
  • removeFront: The second element in the sequence is promoted to the “first” position.
• Back Operations:
  • addBack: The new element is appended after the current “last” node/index.
  • removeBack: The second-to-last element becomes the new “last” position.

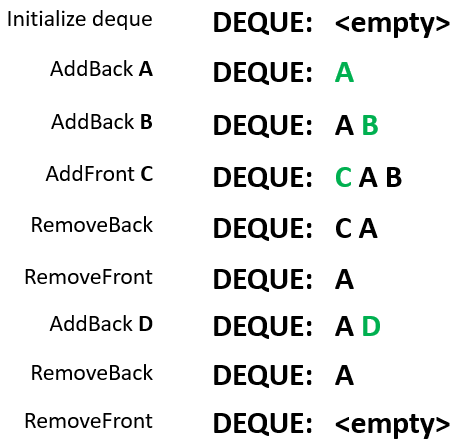

Example Deque Operations

---

Complexity Breakdown

When implementing these operations using the two primary backbones, the performance remains highly efficient:

Operation	Doubly-Linked List	Circular Array
addFront / addBack	O(1) (Pointer swap)	Amortized O(1) (Index shift/Resize)
removeFront / removeBack	O(1) (Pointer swap)	O(1) (Index shift)
peekFront / peekBack	O(1) (Direct pointer)	O(1) (Direct index)

Implementation Detail

In a Doubly-Linked List, removeBack is O(1) because each node knows its predecessor. In a Singly-Linked List, removeBack would be O(n) because you would have to traverse the entire list to find the node before the tail to update its pointer. This is why a Doubly-Linked List is the preferred backbone for a Deque.

---

Summary

If the primary requirement is maintaining a list where you only interact with the ends, a Linked List is generally the superior implementation for a Deque. It provides strictly constant-time performance and efficient memory usage without the “spiky” latency of array resizing.

Beyond browser history, Deques serve as the foundation for two other critical Abstract Data Types.
