Problem Sets 4

ABSTRACT

This problem set explores the internal mechanics of Dynamic Memory Allocation. It focuses on the low-level implementation of malloc and free, specifically how to manage a heap through block headers, footers, pointer arithmetic, and alignment.

The Heap Architecture

In this simulated environment, we use a specific set of rules to manage memory blocks:

• Headers & Footers: Every block has an 8-byte Header. Only free blocks have an 8-byte Footer to allow for backward traversal (coalescing).
• Alignment: All blocks are 16-byte aligned. The smallest possible allocation is 16 bytes.
• Size/Status Encoding: The size_t size_status field uses the Least Significant Bit (LSB) to indicate if a block is busy (1) or free (0).
• Endmark: A sentinel block with size_status = 0x1 (size 0, status busy) signals the end of the heap.

How is heap structured for this Problem Set?

The simulated heap that we have created is a large chunk of memory that we can allocate or free. Here are some relevant blocks:

Block Headers (struct block_header)

• Both allocated blocks and free blocks have block headers
• Block headers are 8 bytes
• The block header stores the size and the status of the block in a size_t size_status variable
  • The least significant bit represents the state of the current block
    • 0 → free
    • 1 → busy / allocated
  • The rest of the bits are used to store the size of the block
    • For allocated blocks → size = block header + payload allocated + padding to make block 16-byte aligned (round up)
    • For free blocks → size = block header + free space + block footer

Block Footers (struct block_footer)

• Only free blocks have block footers
• Block footers are 8 bytes
• Block footers only stores the size, and not the status of the block
  • Since a block’s header contains its size, we know how far forward to move to get to next block’s header.
    • However, when coalescing backwards, we need to know the size of the previous block to get to its header
    • To avoid walking the entire list of blocks from the beginning, we write the block size to a footer in the last 8 bytes of the block
  • Since footers are only needed during coalescing, we only need to add footers to free blocks
    • This means that footers don’t take up extra space in allocated blocks, and free blocks aren’t using that space anyway

Endmark

• To indicate that you have reached the end of the heap, there is special block at the end of the heap: The Endmark
• This block has a size of 0 but is indicated to be busy (Least significant bit is 1)
  • This block has a size_status of 0x1

Diagram

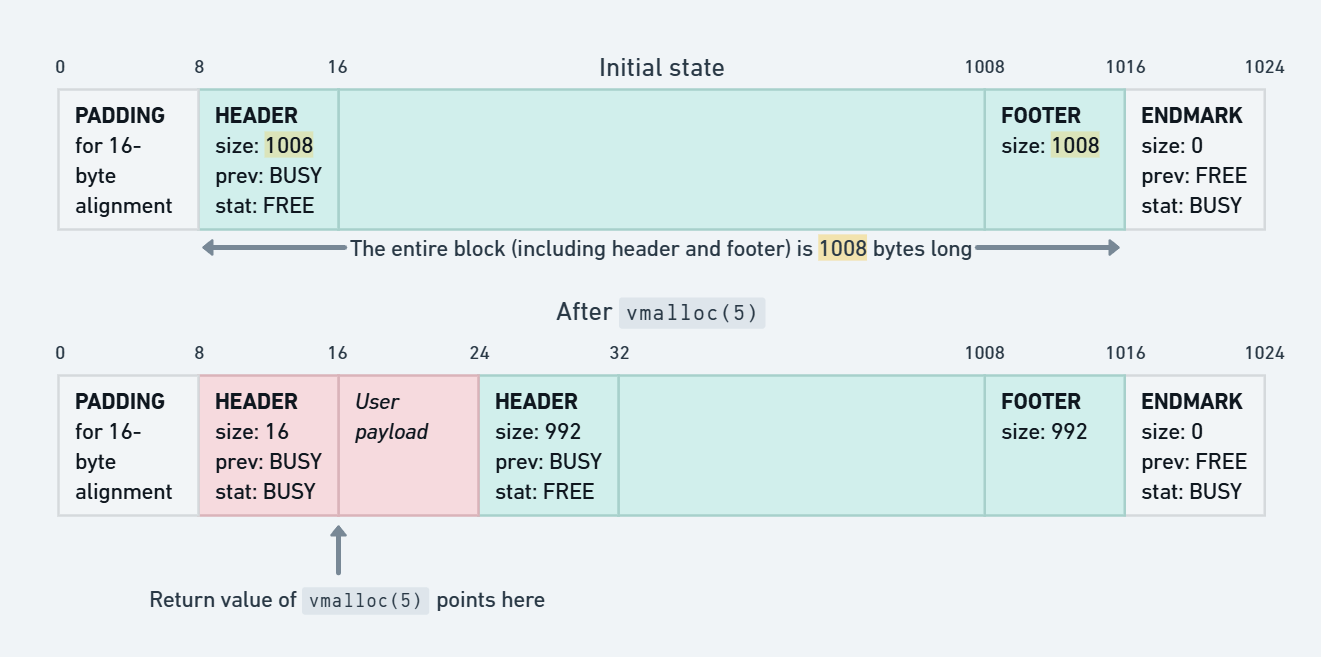

Here is a diagram for heap

• vmalloc is a function you will need to implement in PA4.

How do I access this heap?

Created a few fake heaps behind the scenes and gave them to you in the form of the fake_heaps.o object file. The exact structure of each heap is included in the diagrams of the fake_heaps.h header file

• You can traverse through the heap using the size stored in the block_headers and pointer arithmetic

HINT

When doing pointer arithmetic, cast your pointers to (char *) first to avoid scaling by the size of struct

Problem Categories

Memory Alignment

• Align Address to 16-Byte Boundary: Logic for rounding an address up to the nearest 16-byte multiple.
• Check if Address is 16-Byte Aligned: Verifying that an address is a multiple of 16 (often using the bitwise check addr % 16 == 0).

Header & Footer Metadata

• Extract Block Size from Encoded Block Header: Using bitwise masks to isolate the size bits from the status bit.
• Extract Allocation Status from Encoded Block Header: Checking the LSB to determine if a block is available.
• Extract Previous Block’s Allocation Status from Encoded Block Header: Accessing metadata about the preceding neighbor.
• Set Current Block Allocation Status: Using bitwise OR/AND to toggle the status bit without changing the size.
• Set Previous Block Allocation Status: Updating neighbor metadata during allocation or freeing.
• Write Block Footer: Mirroring the header size into the last 8 bytes of a free block.
• Get Previous Block Size from Footer: Jumping backward in memory by reading the preceding block’s footer.

Block Traversal & Manipulation

• Next Block Address: Calculating the start of the next block by adding the current block’s size to its pointer.
• Split Block: Dividing a large free block into an allocated chunk and a remaining free chunk.
• Coalesce Blocks: Merging adjacent free blocks to combat external fragmentation.
• Compute Minimum Block Size with Header and Alignment: Calculating the total footprint required for a specific payload.

Heap Analysis & Pointers

• Count Free Blocks: Iterating through the implicit list from the start of the heap to the Endmark.
• Number of Bytes Allocated / Number of Bytes Free: Tallying the usage statistics of the current heap state.
• Double Pointers: Managing pointers to block pointers, essential for updating free list heads or managing complex structures.
• Strings & Pointers: Handling character data within the context of heap-allocated memory.
• File Structure and Debugging: Understanding how the fake_heap is modeled and how to use tools to inspect it.

Technical Summary

Related Toolkits

• C Syntax: Specifically Pointer Arithmetic. Remember to cast to (char *) to move byte-by-byte.
• Counting: Used for calculating offsets and total heap capacity.
• Lecture: Memory Management: The theory of heap vs. stack and the design of malloc.
