Count-Min Sketches

ABSTRACT

A Count-Min Sketch is a space-efficient, probabilistic data structure that functions like a frequency table. While a Hash Map stores every key-value pair, the Count-Min Sketch uses a fixed-size 2D array to provide an over-estimate of an element’s frequency. It is the “big brother” of the Bloom Filter, trading exact counts for massive memory savings in high-volume data streams.

---

1. The Memory Wall: Netflix Scale

Imagine tracking the view counts of every episode on Netflix over 48 hours.

• The Hash Map Problem: Storing millions of unique episode IDs as keys and their 64-bit integer counts as values would consume gigabytes of RAM. As the lead engineer, your system would crash under the weight of this metadata.
• The Solution: Instead of storing the keys themselves, we use a Count-Min Sketch. It allows us to track frequencies using a constant amount of memory, regardless of how many unique episodes exist.

---

2. Structure and Mechanism

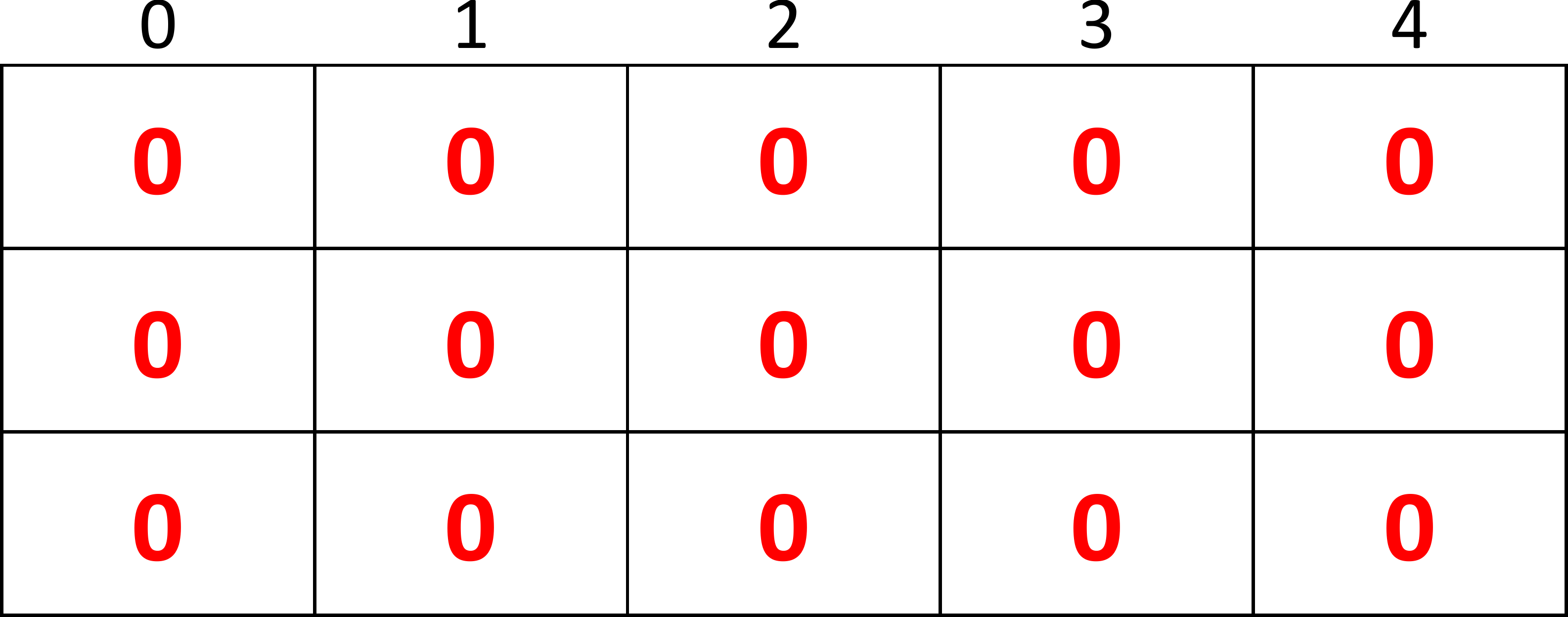

A Count-Min Sketch consists of a 2D array (matrix) with:

• $k$ rows: Each row corresponds to a unique hash function.
• $m$ columns: The range of each hash function.

Incrementing a Count

To record an event (e.g., a user watches an episode of Friends):

1. Pass the episode ID through each of the $k$ hash functions.
2. Each function $h_i$ gives you a column index for its specific row.
3. Increment the counter in each of those $k$ cells.

Estimating a Count (The “Find” Operation)

Because different keys might hash to the same cells (collisions), the values in the cells can be higher than the actual count of a specific key.

1. Retrieve the values from the $k$ hashed positions.
2. The minimum of these $k$ values is your estimate.

Why the minimum?

Since collisions only ever increase the values in the cells, the smallest value among all $k$ rows is guaranteed to be the “cleanest” estimate. While this minimum can still be an over-estimate, the true count $c_x$ will never be greater than this value.

---

3. Mathematical Design

To minimize the error in our estimates, we design the dimensions of the sketch based on our tolerance for error ($ϵ$) and our desired confidence level ($1-\delta$):

• Width (Columns $m$): $m=\lceil \frac{e}{ϵ}\rceil$. More columns reduce the chance of collisions in any single row.
• Depth (Rows $k$): $k=\lceil \ln (\frac{1}{\delta })\rceil$. More rows (hash functions) decrease the probability that every row will have a significant collision for a specific key.

---

4. Pseudocode

increment(x)

increment(x):
    for i from 0 to k-1:
        column = hash_functions[i](x) % m
        matrix[i][column] += 1

estimate(x)

estimate(x):
    min_val = infinity
    for i from 0 to k-1:
        column = hash_functions[i](x) % m
        current_val = matrix[i][column]
        if current_val < min_val:
            min_val = current_val
    return min_val

---

5. Summary Comparison

Feature	Hash Map	Count-Min Sketch
Accuracy	100% Precise	Probabilistic (Over-estimates)
Memory	$O(n)$ — Grows with unique keys	$O(m\times k)$ — Fixed size
Keys Stored	Yes	No
Best Use Case	Small/Medium datasets	Heavy-hitter detection in massive streams
