Homogeneous Recurrence Relations with Constant Coefficients (HRRCC)

ABSTRACT

HRRCC is a technique for finding the closed-form solution of linear recurrences where the current term is a linear combination of previous terms. It is the primary tool for analyzing sequences like Fibonacci and constraints on bit-strings.

---

When To Use

A recurrence is an HRRCC if it matches the form:

$f(n)=c_{1}f(n-1)+c_{2}f(n-2)+\cdots +c_{k}f(n-k)$

Two Mandatory Conditions:

1. Homogeneity: Every term on the right-hand side is a function of a previous $f(k)$. There are no “extra” constants or $n$ terms (e.g., no $+7$ or $+n$).
2. Constant Coefficients: The $c_i$ values must be constants, not functions of $n$.

The “Characteristic” Method

1. The Guess: Assume the solution takes the form $f(n)=A{r}^n$.
2. The Polynomial: Substitute the guess to create the Characteristic Equation:
   • For $f(n)=c_{1}f(n-1)+c_{2}f(n-2)$, the equation is $r^2-c_{1}r-c_2=0$.
3. Solve for Roots: Find the roots ($r_1,r_2,\dots$) of the polynomial.
4. General Form:
   • Distinct Roots: $f(n)=A(r_1{)}^n+B(r_2{)}^n$.
   • Multiplicity (Repeated Roots): If $r_1$ repeats twice, the form is $f(n)=A(r_1{)}^n+B\mathbf{n}(r_1{)}^n$.
5. Solve for Constants: Use Base Cases and Gaussian Elimination (or simple substitution) to find $A$ and $B$.

---

Examples

n-bit strings

An $n$-bit string is a string of length $n$ consisting of 0s and 1s

NOTE

By Power Rule we already know the number of $n$-bit strings are $2^n$ Try to find another way to find this value

Finding Pattern

Let $BS(n)$ be the number of n-bit strings

$n$	$BS(n)$
0	1
1	2
2	4
3	8
4	16

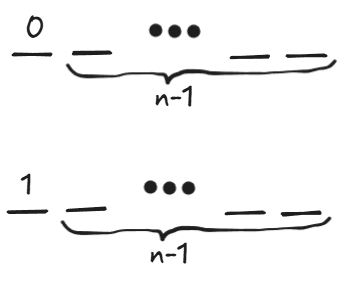

Partitioning the Set of the Results

$$\begin{array}{rl}\text{all n-bit strings}& =\text{all n-bit strings starting with 0}\\ & +\text{all n-bit strings starting with 1}\end{array}$$

Lets write this in $BS(n)$

$$\begin{array}{rl}BS(n)& =BS(n-1)+BS(n-1)\\ & =2BS(n-1)\\ & \\ BS(0)& =1\end{array}$$

Solution

Unraveling

$$\begin{array}{rl}BS(n)& =2BS(n-1)\\ BS(n)& =2[2BS(n-2)]=2^{2}BS(n-2)\\ BS(n)& =2^2[2BS(n-3)]=2^{3}BS(n-3)\\ & ⋮\\ BS(n)& =2^{k}BS(n-k)\\ & ⋮\\ BS(n)& =2^{n}BS(n-(n))\\ & =2^{n}BS(0)\\ & =\boxed{2^n}\end{array}$$

HRRCC

Guess $BS(n)=A{r}^n$

$$\begin{array}{rl}BS(n)& =2BS(n-1)\\ A{r}^n& =2A{r}^{n-1}\\ \frac{r^n}{r^{n-1}}& =2\\ r& =\boxed{2}\end{array}$$

Now we know

$$BS(n)=A{2}^n$$

To find $A$, we need to use the base case

$$\begin{array}{rl}BS(0)& =1\\ A{2}^{(0)}& =1\\ A& =\boxed{1}\end{array}$$

Result:

$$BS(n)=2^n$$

2 by n Domino Tiles

How many ways can we fill a $2$ by $n$ grid with dominos? Each domino takes up $2$ adjacent squares (can be vertical or horizontal)

Finding the Pattern

Let $DT(n)$ be the number of different domino tilings of a $2$ by $n$ grid

$n$	$DT(n)$
1	1
2	2
3	3
4	5
5	8
6	13
7	21
8	34

WARNING

Sometime it is helpful to find the pattern, but need to be careful (as suggested in this problem) pattern might not be what it first appears Notice for $n\le 3$ the patterns seems to emerge as a linear pattern. However after $n=4$ the pattern emerges differently from linear relation

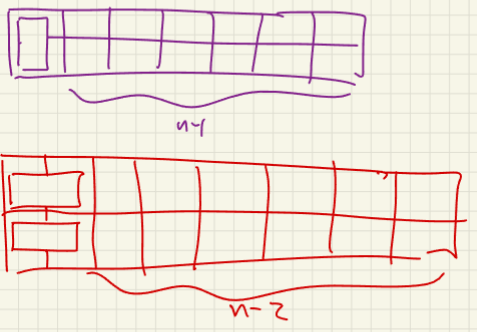

Partitioning the Set of Results

$$\begin{array}{rl}\text{ways to orient dominos}& =\text{the first column has 1 vertical tile}\\ & +\text{the first column contains 2 horizontal tiles}\end{array}$$

Write in $DT(n)$

$$\begin{array}{rl}DT(n)& =DT(n-1)+DT(n-2)\\ & \\ DT(1)& =1\\ DT(2)& =2\end{array}$$

NOTE

Notice having 2 base cases

The number of base cases needed depends on how far back the recurrence goes → what is the maximum depth the recursive call(s) go? With this problem, since there is a $DT(n-2)$ the number of base cases is 2

Solution

Guess $DT(n)=A{r}^n$

$$\begin{array}{rl}DT(n)& =DT(n-1)+DT(n-2)\\ A{r}^n& =A{r}^{n-1}+A{r}^{n-2}\\ \frac{r^n}{r^{n-2}}& =r\\ r^2& =r+1\\ r^2-r-1& =0\to \text{characteristic polynomial, need to solve for root}\\ & \\ r& =\frac{-b\pm \sqrt{b^2-4ac}}{2a}\\ r& =\frac{1\pm \sqrt{1-4(1)(-1)}}{2(1)}\\ r& =\boxed{\frac{1\pm \sqrt{5}}{2}}\end{array}$$

PROBLEM

$r$ has 2 values To resolve this, we incorporate both roots for $DT(n)$ in the form of linear combination

Let 2 roots be:

• $\varphi =\frac{1+\sqrt{5}}{2}\approx 1.618$
• $\overline{\varphi }=\frac{1-\sqrt{5}}{2}=\frac{-1}{\varphi }\approx -0.618$

As such

$$DT(n)=A{\varphi }^n+B{\overline{\varphi }}^n$$

It is clear that the first term $A{\varphi }^n$ dominates the term (since $\varphi >\overline{\varphi }$). Therefore

$$DT(n)\in \Theta ({\varphi }^n)=\Theta (1.618^n)$$

NOTE

To find $A$ and $B$, we want to use Gaussian Elimination For the purpose of computer science the coefficients $A$ and $B$ are not important as we only care about the growth rate of the function.

We can find $A=\frac{\varphi }{\sqrt{5}}$ and $B=\frac{1}{\varphi \sqrt{5}}$ Use this, we can get the closed form of the algorithm to be $DT(n)=\frac{1}{\sqrt{5}}({\varphi }^{n+1}+(\frac{-1}{\varphi }{)}^{n+1})$

Notice that the second term $(\frac{-1}{\varphi }{)}^{n+1}$ grows smaller as $n$ increases, we can approximate $DT(n)$ as the nearest integer of $\frac{{\varphi }^{n+1}}{\sqrt{5}}$ which we get $DT(n)=\lfloor \frac{{\varphi }^{n+1}}{\sqrt{5}}\rceil$ → $\lfloor x\rceil$ means the nearest integer of $x$

N-Bit Binary Strings Without “11” Substring

Finding the Pattern

let $A(n)$ be the number of binary strings without “11” substring

$n$	$A(n)$
0	1
1	2
2	3
3	5

Partition the set

$$\begin{array}{rl}\text{All n-bit "11" avoiders}& =\text{All that starts with 0}+\text{All that starts with 1}\\ A(n)& =A(n-1)+A(n-2)\\ & \\ A(1)& =2\\ A(0)& =1\end{array}$$

Solution

Guess $A(n)=c{r}^n$

$$\begin{array}{rl}A(n)& =A(n-1)+A(n-2)\\ c{r}^n& =c{r}^{n-1}+c{r}^{n-2}\\ r^2& =r+1\\ r^2-r-1& =0\\ r& =\frac{1\pm \sqrt{5}}{2}\to \text{Fibonacci Sequence}\end{array}$$

As such the runtime for $A(n)\in \boxed{\Theta (1.618^n)}$

N-Bit Binary Strings Without “111” Substring

Finding the Pattern

Let $B(n)$ be the number of binary strings of length $n$ without a occurrence of “111”

$n$	$B(n)$
0	1
1	2
2	4
3	7
4	13

Partition the Set

$$\begin{array}{rl}\text{All n-bit "111" avoiders}& =\text{All that starts with 0}+\text{All that starts with 10}+\text{All that starts with 11}\\ B(n)& =B(n-1)+B(n-2)+B(n-3)\\ & \\ B(0)& =1\\ B(1)& =2\\ B(2)& =4\end{array}$$

Solution

Guess $B(n)=A{r}^n$

$$\begin{array}{rl}B(n)& =B(n-1)+B(n-2)+B(n-3)\\ A{r}^n& =A{r}^{n-1}+A{r}^{n-2}+A{r}^{n-3}\\ r^3& =r^2+r+1\\ r^3-r^2-r-1& =0\end{array}$$

NOTE

Notice that this is a cubic, to find the root we just use a online calculator to find the root

since with polynomials, it is possible to have complex numbers as a root and is difficult to solve a polynomial without generalized equation

By plugging in $r^3-r^2-r-1$ into Wolfram|Alpha: Computational Intelligence, we get 3 roots:

• $r\approx 1.8393$
• $r\approx -0.42-0.61i$
• $r\approx -0.42+0.61i$ Note that although we have 3 roots and have complex roots, the real root ($1.84$) is the root that dominates the runtime

$$B(n)\in \boxed{\Theta (1.8393^n)}$$

---

Key Insights

• Multiplicity: If a root $r$ appears $m$ times, the terms are $(A_0+A_{1}n+\cdots +A_{m-1}{n}^{m-1})r^n$.
• Dominant Root: In CS, we usually only care about the largest root, as it dictates the Big-$\Theta$ growth.
• Base Cases: You need as many base cases as the “depth” of your recurrence (e.g., $f(n-3)$ needs 3 base cases).
