Runtime of Algorithms

ABSTRACT

Determining the runtime of an algorithm involves analyzing the growth rate of its execution time relative to the input size $n$. We use Asymptotic Notation ($O,\Omega ,\Theta$) to provide upper, lower, and tight bounds, often applying the Product and Sum rules to decompose complex loops.

---

1. Product Rule for Loops

If a loop runs $O(T_2(n))$ times and the body of that loop takes $O(T_1(n))$ to execute, the total time is:

$O(T_1(n)\cdot T_2(n))$

The “Tightness” Trap

While the product rule always provides a valid upper bound ($O$), it is not always a tight bound ($\Theta$). A pessimistic upper bound occurs when the “worst case” of the inner logic rarely happens across all iterations of the outer loop.

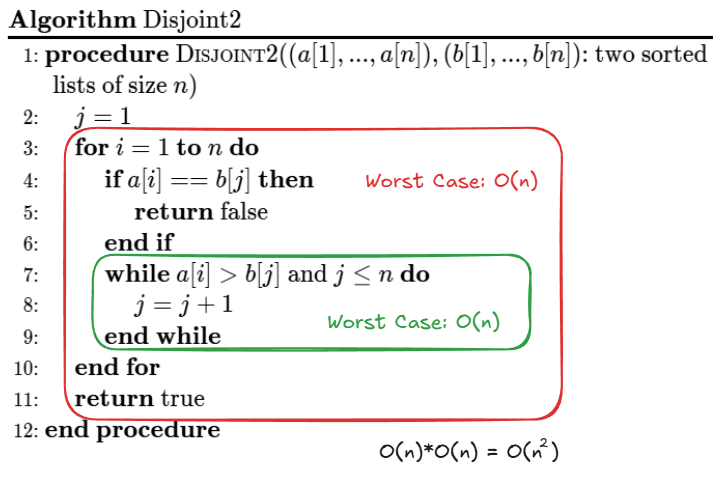

Example: Disjoint Set (Two-Pointer Method)

To check if two sorted lists are disjoint (no common elements), we use two pointers, $i$ and $j$.

• Pessimistic View: The outer loop runs $n$ times, and the inner logic seems to “interact” with $n$ elements. One might guess $O(n^2)$.

• Actual Runtime: In each comparison, either $i$ increments or $j$ increments. Neither pointer ever resets. Since each pointer can only move $n$ times, the total number of operations is at most $2n$.

• Result: The runtime is $\Theta (n)$, even though a naive product rule might suggest higher.

---

2. Sum Rule for Processes

If an algorithm performs two distinct tasks sequentially—first Process A then Process B—the total runtime is the sum of their individual runtimes:

$O(T_1(n)+T_2(n))$

In asymptotic analysis, this simplifies to the maximum of the two: $O(\max (T_1(n),T_2(n)))$.

---

3. Proving Tight Bounds ($\Theta$)

To conclude that an algorithm is $\Theta (f(n))$, you must prove both the upper and lower bounds.

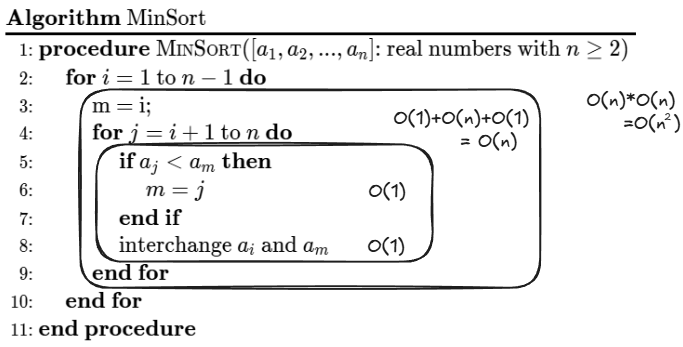

Example: Selection Sort Comparisons

Consider the nested loop structure of Selection Sort (MinSort):

1. Lower Bound ($\Omega$): By counting the number of comparisons: $(n-1)+(n-2)+\cdots +1=\frac{n(n-1)}{2}$

   This is a polynomial of degree 2, so $T(n)\in \Omega (n^2)$.

2. Upper Bound ($O$): By the Product Rule, the outer loop runs $n$ times and the inner loop runs at most $n$ times. Thus, $T(n)\in O(n^2)$.

IMPORTANT

Because $T(n)\in \Omega (n^2)$ AND $T(n)\in O(n^2)$, we can state definitively that:

$T(n)=\Theta (n^2)$

---

4. Analysis Summary

Rule	Mathematical Form	Common Usage
Product Rule	$O(T_1\cdot T_2)$	Nested loops, multiplying iterations by body cost.
Sum Rule	$O(T_1+T_2)$	Sequential blocks of code or function calls.
Tight Bound	$\Theta (f(n))$	When $O$ and $\Omega$ meet, describing the exact growth rate.
