Loop Invariants

ABSTRACT

A loop invariant is a property that remains true before and after each execution of a loop’s body. It is the primary tool used to prove the correctness of iterative algorithms through mathematical induction.

---

1. The Three-Step Proof Process

To prove an algorithm is correct using an invariant, you must follow this logical flow:

1. State the Invariant: Define the property precisely in terms of the loop variables and iterations ($t$).
2. Prove the Invariant (Induction):
   • Base Case: Show it is true before the loop starts ($t=0$).
   • Inductive Step: Show that if it’s true after $t$ iterations, it remains true after the $(t+1{)}^{th}$ iteration.
3. Prove Correctness: Show that the invariant, combined with the loop termination condition, logically leads to the desired solution.

---

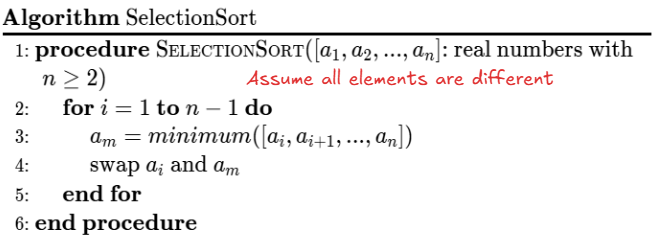

2. Selection Sort (MinSort) Example

Selection sort works by repeatedly finding the minimum element from the unsorted portion and moving it to the front.

The Invariants (after $t$ iterations)

1. Sorted-ness: The first $t$ elements are in non-decreasing order.
2. Minimality: The first $t$ elements are the $t$ smallest elements of the entire array.

Proof Sketch

• Base Case ($t=0$): The first $0$ elements are vacuously true; no elements exist to be out of order or “not the smallest.”
• Inductive Step: Assume the first $t$ are sorted and smallest. In iteration $t+1$, the algorithm finds the minimum of the remaining $n-t$ elements and places it at index $t+1$. Since this new element is $\ge$ the previous $t$ elements (by minimality) but $\le$ all remaining elements, the first $t+1$ elements are now sorted and smallest.
• Termination: After $n-1$ iterations, the first $n-1$ elements are sorted and smallest. This forces the $n^{th}$ element to be the largest, meaning the entire array is sorted.

---

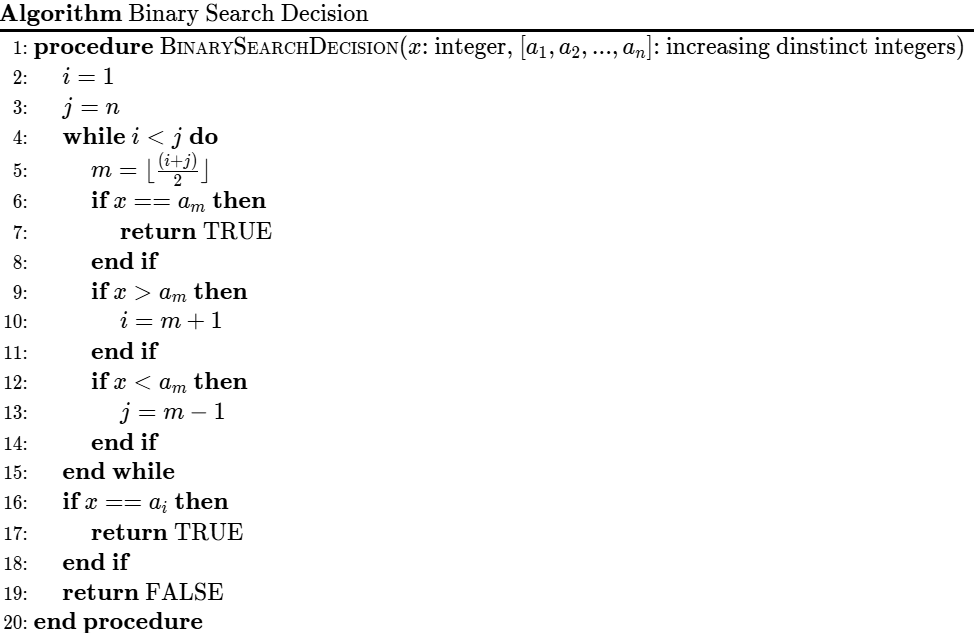

3. Binary Search Decision Example

Binary search is a Decision Algorithm (returns TRUE/FALSE). To prove it correct, we use a Bi-Directional Proof.

Claim 1: If the algorithm returns TRUE, then $x$ is in the list.

• Proof: The algorithm only returns TRUE if it encounters a line where target == list[mid]. By definition, $x$ is in the list.

Claim 2: If $x$ is in the list, then the algorithm returns TRUE.

This requires the Loop Invariant: $a_i\le x\le a_j$ (where $i$ and $j$ are the current search boundaries).

• Base Case: Initially $i=1,j=n$. Since the list is sorted and $x$ is in the list, it must be that $a_1\le x\le a_n$.
• Inductive Step:
  • If $x>a_m$, we move $i$ to $m+1$. Since $x$ was $\le a_j$ and now $x\ge a_{m+1}$, the invariant holds.
  • If $x<a_m$, we move $j$ to $m-1$. Since $x$ was $\ge a_i$ and now $x\le a_{m-1}$, the invariant holds.
• Termination: When the loop ends ($i=j$), the invariant $a_i\le x\le a_j$ implies $a_i\le x\le a_i$. Therefore $x=a_i$, and the algorithm returns TRUE.

---

4. Key Definitions

Term	Definition
Vacuously True	A statement that is true because its antecedent cannot be satisfied (e.g., “All elements in an empty set are purple”).
Decision Problem	A problem with a simple YES/NO (True/False) answer.
Iteration Variable ($t$)	A counter representing how many times the loop body has fully executed.
