Graph Representations

ABSTRACT

Choosing how to store a graph in memory is a trade-off between space and speed. Depending on whether a graph is dense (many edges) or sparse (few edges), we use either an Adjacency Matrix or an Adjacency List to optimize our algorithms.

---

1. Density and Sparsity

To choose the right representation, we compare the number of edges $|E|$ to the maximum possible edges.

• Maximum Edges: In a graph with $|V|$ vertices, if every vertex connects to every other vertex (including itself), $|E|=|V{|}^2$.

• Dense Graph: $|E|$ is close to $|V{|}^2$.

• Sparse Graph: $|E|$ is significantly smaller than $|V{|}^2$.

---

2. The Adjacency Matrix

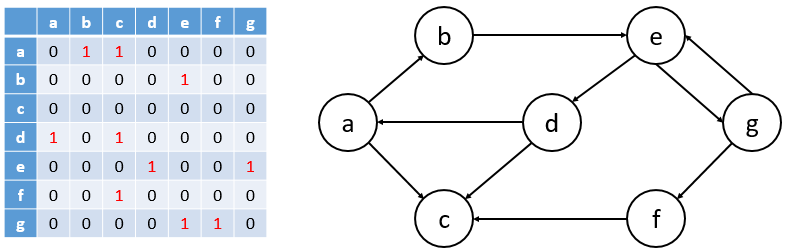

An Adjacency Matrix is a 2D array of size $|V|\times |V|$.

• Logic: The cell at $M(i,j)$ contains a 1 if there is an edge from vertex $i$ to vertex $j$, and a 0 otherwise.
• Weights: For weighted graphs, replace the 1s with the actual edge costs (e.g., $M(i,j)=5.5$).
• Space Complexity: $O(|V{|}^2)$.

How would the adjacency matrix of an undirected graph look like?

STOP and Think Answer: The adjacency matrix of an undirected graph is always symmetric across the diagonal ($M(i,j)=M(j,i)$). This is because an edge between $i$ and $j$ works in both directions.

---

3. The Adjacency List

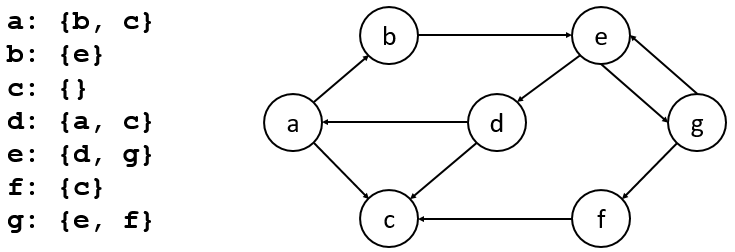

An Adjacency List uses an array of lists. Each index $i$ in the array corresponds to a vertex, and the list at that index contains its neighbors.

• Logic: If vertex $0$ connects to $1$ and $4$, the list at index 0 is [1, 4].
• Weights: Store neighbors as pairs: (destination, weight).
• Space Complexity: $O(|V|+|E|)$.

---

4. Representation Comparison

Feature	Adjacency Matrix	Adjacency List
Best For	Dense Graphs	Sparse Graphs
Space	$O(\Vert V{\Vert }^2)$	$O(\Vert V\Vert +\Vert E\Vert )$
Edge Lookup	$O(1)$ (Very Fast)	$O(\text{degree of }u)$
Find all Neighbors	$O(\Vert V\Vert )$	$O(\text{degree of }u)$
Add Vertex	$O(\Vert V{\Vert }^2)$	$O(1)$
Weighted Version	Replace $1$s with weights	Store pairs (neighbor, weight)

---

5. Summary of Trade-offs

• Matrices are great when you need to know instantly if an edge exists between two nodes, but they waste a massive amount of memory on 0s if the graph is sparse.

• Lists are the industry standard for most real-world applications (like web maps) because most real-world graphs are sparse.
